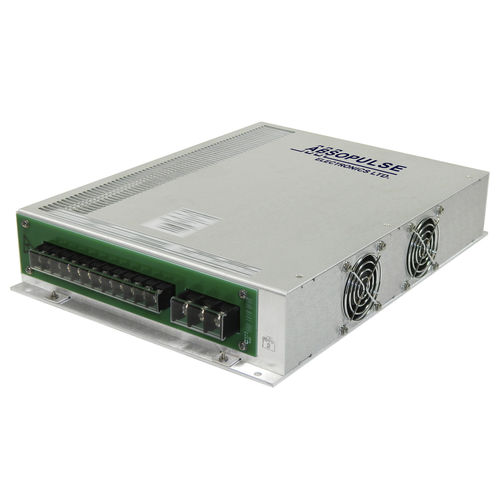

AC/DC power supply PFL 2K-E/110-F6W

compactfor industrial applicationswith power factor correction (PFC)

ABSOPULSE Electronics has recently released the PFL 2K-E/110-F6W, a switched-mode AC-DC power supply designed for rugged 2kW industrial applications that require power factor correction (PFC). The power supply uses field-proven PFQ 900 technology to deliver a compact, light-weight cost-effective solution with high system reliability and power efficiency. The PFL 2K-E/110-F6W unit employs active power factor correction to convert 230Vac (195-264Vac) to an 110Vdc/18A single output. Custom input/output voltages are available on request. Key Specifications • - 2000W continuous output power; • - Input: 230Vac, 47-63Hz, 195-264Vac operating range or custom; • - Active power factor correction (PFC) on input; • - Complies with EN61000-3-2 and EN61000‐3‐12 directives for low input harmonic distortion; • - Isolation: 4300Vdc input/output; • - Input meets EN55032 Class A with wide margins; • - Cooling by high quality internal fans; • - 0°C to +50°C operating temperature range – no derating; • - Designed to meet EN/UL60950-1 and equivalent safety standards; • - Compact construction: 254 x 65 x 349 mm; • - Ruggedized: resistance to shock & vibration (IEC 61373 Cat 1 A&B); • - Conformal coating; • - MTBF 110,000 hours at 45°C (fans excluded); • - 86% efficiency at full load depending on input/output; • - Full electronic protection; • - Compact chassis: 254 x 65 x 349 mm (10″ x 2.6″ x 13.75″).
