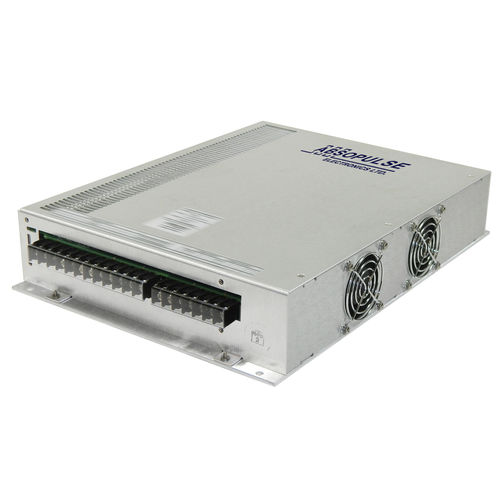

AC/DC power supply HTP 1K-F6W series
single-outputswitchingthree-phase

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Technology
switching
Network
three-phase
Features
compact
Applications
for industrial applications
Other characteristics
high-voltage
Input voltage

Min.: 360 V

400 V, 480 V

Max.: 530 V

Output voltage

24 V, 48 V, 125 V

Power

1,000 W

Description

This rugged, industrial quality AC-DC power converter with 3-phase input generates the required output power. The design is based on field proven topology which has a track record in numerous applications. The unit is built on a single PCB. High quality built-in fans provide sufficient airflow for operation without de-rating within the specified temperature range. The fans draw air into the unit. All heat generating components are installed on aluminum heatsink blocks which are thermally connected to the base plate. This ensures exceptional mechanical ruggedness. Conformal coating provides protection against humidity and airborne contaminants. Full electronic protection, low component count, large design headroom, and the exclusive use of components with established reliability contribute to a high MTBF. The unit is manufactured at our plant under strict quality control. Other models with higher and lower output power are also available.
