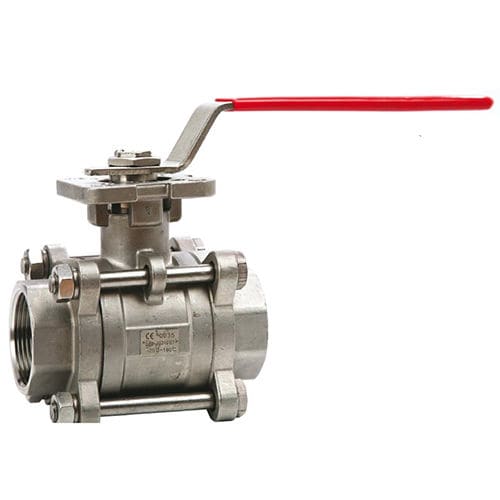

3-piece valve 153 seriesballleverfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water, for air
- Body
- threaded, 3-piece
- Applications
- for industrial applications
- Material
- stainless steel
- Other characteristics
- DIN, full-flow, anti-static
- DN
Min.: 0.375 in
Max.: 4 in
- Pressure
63 bar
(913.7 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 200 °C
(392 °F)
Description
AISI-316 · BSPP · NPT · BW · SW
ISO-5211 mounting pad to mount directly actuators
Characteristics
• General industry application,
•Blow-out proof stem design.
•100% tested with air and water (Open/Close).
•Anti-static system.
Specifications
Length: DIN 3202 m3.
Ends: Fig. 1531S BSPP DIN-259.
Fig. 1531SNPT.
Fig. 1533S BUTT WELD.
Fig. 1534S SOCKETWELD.
Catalogs
Catalogue ABV
32 Pages
