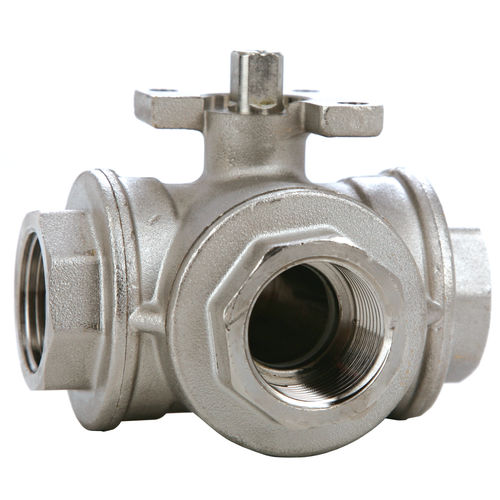

Ball valve manualthreadedfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- threaded
- Applications
- for industrial applications
- Material
- nickel-plated brass
- Number of channels
- 3-way
- Other characteristics
- ISO, full-flow
- DN
Min.: 0.25 in
Max.: 2 in
- Pressure
10 bar, 16 bar, 30 bar
(145 psi, 232.1 psi, 435.1 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 160 °C
(320 °F)
Description
Full bore · 3 ways “L” & “T” 4 positions
Characteristics
•General industry applications.
•Blow-out proof stem design.
•Double system of sealing in the stem, for PTFE joints and FKM (VITON) O-Ring.
•ISO-5211 mounting pad to mount directly actuators
Specifications
•'Ends: BSPP threaded acc. to DIN-259.
•Vacuum: Maximum 10-3 torr.
•Direction of flow: In the three directions.
