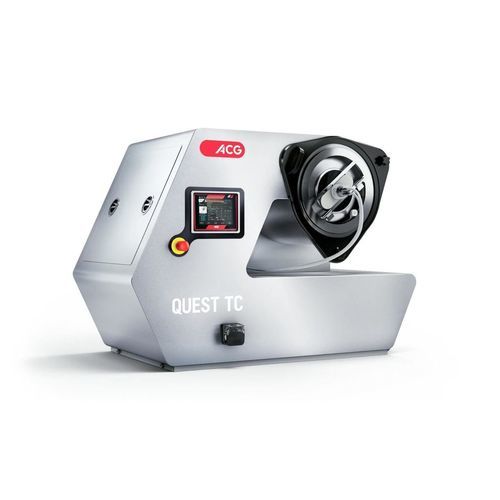

Laboratory coating machine QUEST TC

benchtopfor pharmaceutical applicationsfor tablets

About the QUEST TC
The QUEST TC is a tabletop coating machine designed for R&D and pilot-scale batches. Its perforated drum concept with three interchangeable drums and an exclusive Schlick nozzle allows processing of small batches from 200 g and generating reliable process data for scale-up.

Applications

• Tablet coating
• Mini-tablet coating (down to ~2 mm diameter)

Features & Benefits

• Three interchangeable drums (0.8 L, 1.6 L, 2.5 L) — handle a wide range of batch sizes with one unit.
• Mini-tablet capability — process tablets from approximately 2 mm diameter.
• Adjustable gun-to-bed distance and angle — flexible spray coverage across tablet bed and support for aqueous coatings with varied drying times.
• Smart design with easy access — simplified in-line handling and cleaning.
• Integrated weighing scale with PLC — facilitates process monitoring and parameter control.
• PLC-based control with touchscreen HMI — intuitive operation and control.

Technical specifications

• Model: QUEST TC
• Manufacturer / Brand: ACG
• Intended use: R&D and pilot-scale tabletop coating machine for tablets and mini-tablets
• Drum design: perforated drum with three interchangeable drums (0.8 L, 1.6 L, 2.5 L)
• Working volumes (per drum): 0.8 L (min 0.45 L / max 0.8 L); 1.6 L (min 0.9 L / max 1.6 L); 2.5 L (min 1.4 L / max 2.5 L)
• Minimum workable batch size: from 200 g (suitable for R&D / feasibility)
• Nozzle: Schlick nozzle
• Controls: PLC-based control with touchscreen HMI
• Integrated weighing scale for process control
