Film coating coating machine SMARTCOATER 500 X•ONE

high-performancefor pharmaceutical applicationsfor tablets

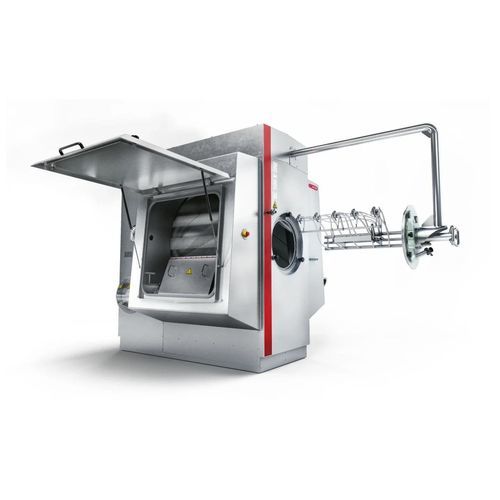

About the SMARTCOATER 500 X•ONE
Backed by more than 60 years of ACG engineering expertise, the SMARTCOATER 500 X•ONE is an X•ONE-series tablet-coating system designed to deliver fast, economical and reproducible coating processes. The machine handles batches up to 500 L and integrates modular automation and advanced process control to support production and compliance requirements.

Applications

• Film coating of tablets
• Sugar coating of tablets
• Micro-tablet coating
• Pellet coating

Features & Benefits (summary)

• Unique coating system (baffles, spray arms, drum) — Flexibility to operate with 15–100% batch occupancy
• High-performing spray-arm with full external control via infinity handle — Accurate bed coverage across all batch sizes; positionable to product requirements
• ACG X•ONE 2.0 spray nozzle with Anti‑Bearding Cap (developed with Düsen‑Schlick GmbH) — Reduced product build-up and easier maintenance; lighter handling (approx. 800 g)
• Modular, automated charging/discharging with inbuilt discharge baffles — Dust-free closed-door charging and near-100% tablet discharge
• Advanced wash-in-place (WIP) with optimized nozzle arrangement — Complete wetting of dead spots for faster, safer cleaning
• ACG process control system — Compliant with ATEX, GAMP 5 and 21 CFR Part 11 for secure monitoring and traceability

Technical specifications (working volume)
Working volume (application) — Min — Max
Tablet coating — 50 L — 500 L
Micro-tablet coating — 150 L — 400 L
Pellet coating — 250 L — 400 L

Also available in (models / sizes)

• SMARTCOATER 125 X•ONE — 125 L
• SMARTCOATER 250 X•ONE — 250 L
• SMARTCOATER 350 X•ONE — 350 L
• SMARTCOATER 700 X•ONE — 700 L
• SMARTCOATER 1000 X•ONE — 1,000 L
• SMARTCOATER 1400 X•ONE — 1,400 L
• SMARTCOATER 2000 X•ONE — 2,000 L (extra large scale)

Notes and design highlights
Modular automated charging/discharging; engineered spray arms and baffles for uniform coverage; lightweight anti‑bearding X•ONE 2.0 nozzle to minimise product build-up and maintenance; integrated WIP for in‑situ cleaning; process control aligned with regulatory standards (ATEX, GAMP 5, 21 CFR Part 11).

Characteristics / technical specifications

• Working volume: tablet coating 50–500 L; micro‑tablet coating 150–400 L; pellet coating 250–400 L
• Coating system: baffles, spray arms and drum enabling 15–100% batch occupancy
• External-control spray arm with infinity handle for accurate bed coverage
• X•ONE 2.0 spray nozzle with Anti‑Bearding Cap (collaboration with Düsen‑Schlick) — reduced build-up and lower weight
• Modular, automated charging and discharging with inbuilt discharge baffles — dust-free operation and complete discharge
• Advanced WIP technology — optimized nozzle number/arrangement for complete wetting and efficient cleaning
• Process control: ACG system compliant with ATEX, GAMP 5 and 21 CFR Part 11
• Applications supported: film coat, sugar coat, micro‑tablet coating, pellet coating
