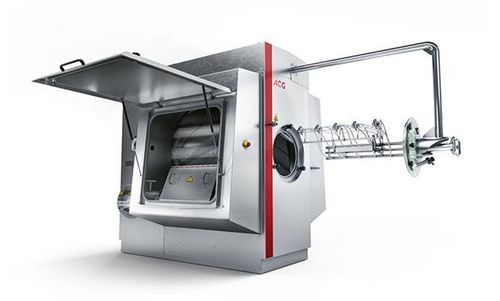

Film coating coating machine SMARTCOATER 700 X•ONE

high-performanceautomatedfor pharmaceutical applications

About the SMARTCOATER 700 X•ONE
Backed by more than 60 years of ACG engineering expertise, the SMARTCOATER X•ONE incorporates everything you need to ensure swift and economical processes and uphold consistently high standards. As part of the new X•ONE series, it provides increased process speed, efficiency and usability. Developed to bring design and technology into harmony, this machine handles batches up to 700 litres effortlessly.

Applications

• Film coating of tablets
• Sugar coating of tablets
• Micro-tablet coating
• Pellet coating

Features & Benefits (summary)
Unique coating system that includes baffles, spray arms and drum | Flexibility to work with 15 – 100% batch occupancy
High-performing spray-arm design with full external control via infinity handle | Accurate bed coverage for the entire batch size; can be positioned to match all product requirements and avoids delays caused by in-process intervention
ACG X•ONE 2.0 Spray Nozzle (developed with Düsen-Schlick GmbH) with Anti-Bearding Cap — now 50% lighter | No product build-up; easier to clean, maintain and handle
Modular, automated and integrated design for tablet charging and discharging with inbuilt discharge baffles | Dust-free, closed-door charging and 100% tablet discharge until the last tablet
Advanced wash-in-place (WIP) technology with optimum number and arrangement of nozzles | Complete wetting of dead spots for faster, safer and more efficient washing of all parts, including hard-to-reach corners
ACG’s exclusive process control system | Compliant with ATEX, GAMP 5 and 21 CFR Part 11 for intuitive, secure monitoring and control

Technical specifications (overview)
Working volume – Tablet coating | Micro-tablet coating | Pellet coating
Min: 70 l | 210 l | 350 l
Max: 700 l | 560 l | 560 l

Caractéristiques / spécifications techniques

• Series: SMARTCOATER X•ONE
• Model capacity (working volume): up to 700 l (tablet coating)
• Batch occupancy flexibility: 15% – 100%
• Coating system: baffles, spray arms and drum integrated
• Spray arm: externally controlled via infinity handle for precise bed coverage
• Spray nozzle: X•ONE 2.0 Spray Nozzle with Anti-Bearding Cap (lighter, reduced bearding)
• Charging/discharging: modular automated design with inbuilt discharge baffles; closed-door, dust-free charging; 100% discharge
• WIP: advanced wash-in-place with optimized nozzle arrangement for full wetting of dead spots
• Process control: proprietary ACG process control; compliant with ATEX, GAMP 5 and 21 CFR Part 11
• Applications supported: tablet film coating, tablet sugar coating, micro-tablet coating, pellet coating
