Film coating coating machine SMARTCOATER 350 X•ONE

high-performanceautomaticfor pharmaceutical applications

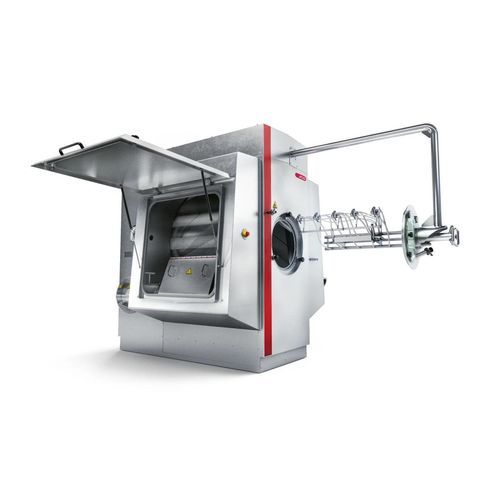

About the SMARTCOATER 350 X•ONE
Built on over 60 years of ACG engineering, the SMARTCOATER X•ONE integrates design and process technology to deliver faster, economical tablet coating with consistent results. The 350 model is an upgrade in the X•ONE series, offering higher process speed, improved usability and handling of batches up to 350 L.

Applications

• Film coating of tablets
• Sugar coating of tablets
• Micro-tablet coating
• Pellet coating

Features & Benefits

• Unique coating system (baffles, spray arms and drum) — flexibility to operate with 15–100% batch occupancy.
• High-performance spray-arm design with full external control via infinity handle — accurate bed coverage across batch sizes and fast positioning to match product needs; reduces in-process interventions.
• ACG X•ONE 2.0 spray nozzle (developed with Düsen‑Schlick GmbH) with Anti‑Bearding Cap — approximately 50% lighter (as light as 800 g) to reduce product build-up and simplify cleaning and maintenance.
• Modular, automated and integrated charging/discharging with inbuilt discharge baffles — dust-free closed-door charging and 100% tablet discharge to the last tablet.
• Advanced wash-in-place (WIP) with optimized nozzle number and arrangement — full wetting of dead spots for faster, safer and more effective cleaning, including hard-to-reach corners.
• ACG process control system — intuitive, secure monitoring and control; compliant with ATEX, GAMP 5 and 21 CFR Part 11 for regulated production environments.

Also available in

• SMARTCOATER 125 X•ONE — 125 L
• SMARTCOATER 250 X•ONE — 250 L
• SMARTCOATER 350 X•ONE — 350 L
• SMARTCOATER 500 X•ONE — 500 L
• SMARTCOATER 700 X•ONE — 700 L
• SMARTCOATER 1000 X•ONE — 1,000 L
• SMARTCOATER 1400 X•ONE — 1,400 L
• SMARTCOATER 2000 X•ONE — 2,000 L (extra large scale)

Technical specifications

• Working volume (tablet coating): Min 35 L — Max 350 L
• Working volume (micro-tablet coating): Min 105 L — Max 280 L
• Working volume (pellet coating): Min 175 L — Max 280 L
• Batch occupancy range: 15% to 100%
• Spray system: X•ONE 2.0 spray nozzle with Anti‑Bearding Cap (lighter nozzle for reduced buildup and easier cleaning)
• Charging/discharging: Modular automated design with inbuilt discharge baffles for dust-free charging and 100% discharge
• Cleaning: Advanced WIP with optimized nozzle arrangement for complete wetting of dead spots
• Control & compliance: ACG process control system; compliant with ATEX, GAMP 5 and 21 CFR Part 11
