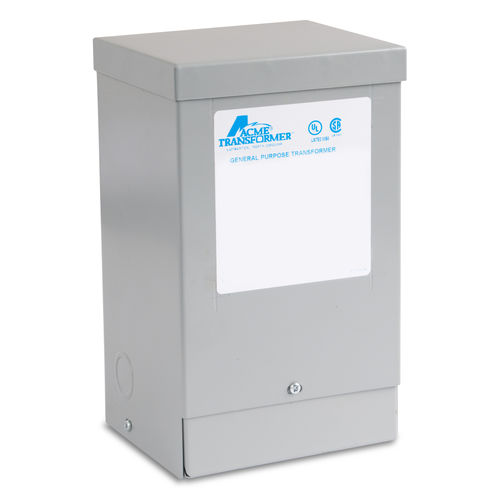

Distribution transformer TP2793 seriesdryindustrialsingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- distribution
- Configuration
- dry
- Applications
- industrial
- Electrical characteristics
- single-phase
- Mounting
- floor-standing
- Other characteristics
- primary, secondary
- Electric power
1 kVA, 2 kVA, 3 kVA, 5 kVA, 7.5 kVA
(1.3596 hp, 2.7192 hp, 4.0789 hp, 6.7981 hp, 10.1972 hp)- Primary voltage
Min.: 190 V
Max.: 440 V
- Secondary voltage
110 V, 220 V
Description
Acme's single phase transformers are designed for use in industrial and commercial applications. Transformers rated up to 25 kVA are enclosed within an encapsulated, NEMA 3R enclosures. Standard transformers rated from 37.5 to 250 kVA are enclosed in ventilated, NEMA 2 enclosures (optional weathershields to meet NEMA 3R requirements are available). Acme's full line of single phase transformers include a range of options for primary and secondary winding voltages, stainless steel enclosures for use in corrosive environments, and 50/60 Hz rated models for export applications. Note: Acme Transformers with a kVA rating of 37.5 or greater are Energy Efficient. Transformers rated 25kVA and lower are just regular encapsulated transformers.
Export Model
190/200/208/220 x 380/400/416/440 Primary Volts - 110/220 Secondary Volts - 1Ø, 50/60Hz
