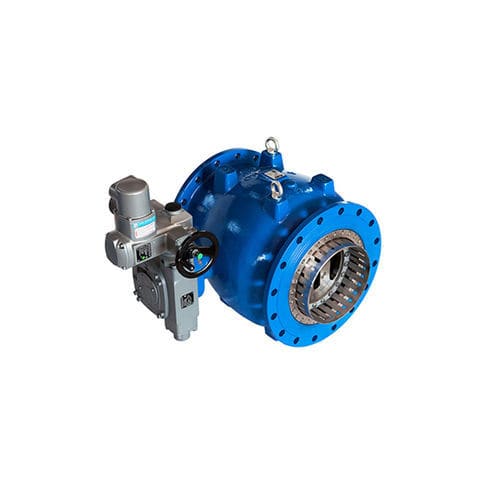

Needle valve REGFLUX
electricregulatingfor water

needle valve
needle valve
needle valve
Add to favorites
Compare this product

Go to the ACMO S.p.A. website for more information

Characteristics

Type
needle
Operation
electric
Function
regulating
Media
for water
Body
flange, stainless steel, steel, iron, coated
Other characteristics
ISO
DN

Min.: 80 mm
(3.15 in)

Max.: 2,200 mm
(86.614 in)

Pressure

10 bar, 16 bar, 25 bar, 40 bar, 64 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi, 928.2 psi)

Description

Innovative design for flow optimization with a reduced pressure loss in open valve position. Reduced torque for low actuating moments aimed to facilitate the operations of all actuators Made in Italy. STANDARDS OF MANUFACTURE EN 1074-1 VALVES FOR WATER SUPPLY EN 1074-5 REGULATING VALVES EN 558 S15 (ISO 5752) FACE TO FACE EN 1092-1 DRILLING FLANGES STEEL EN 1092-2 DRILLING FLANGES DUCTILE IRON MATERIALS BODY DN80-100-150 – AISI304 (1.4308) STAINLESS STEEL EN 10213 DN200÷2200 – EN-GJS-500-7 EN 1563 (ISO 945) OBTURATOR (CYL. EXT. SHEEL) AISI304 (Fe430) STAINLESS STEEL EN 10088-3 SEATING RING AISI304 (X5CrNi18-10) STAINLESS STEEL EN 10088-3 STEM DN80÷1600 – AISI420B (X20Cr13) STAINLESS STEEL EN 10088-3 DN1800÷2200 – AISI431 STAINLESS STEEL EN 10088-3 MAIN SEAL TECHNOPOLYMER SCREWS AISI304 (A2-70) STAINLESS STEEL EN 10088-3 CORROSION PROTECTION COATED INSIDE-OUTSIDE (FBE) EPOXY 300 MICRONS RAL5005 CERTIFIATES WRAS (UK) ACS (F) UBA (D) D.M. NR.174 – HEALTH DEPARTMENT (I) ICIM – PRODUCT CERTIFICATE DN80÷1600 PN10-16 DN80÷1000 PN25 TESTING EN 12266-1 (ISO 5208) PRESSURE TESTS GRADE “A” ACCESSORIES ELECTRIC ACTUATOR CYLINDER ANTI-CAVITATION WITH HYDRAULIC CYLINDER AND COUNTER-WEIGHT WITH SYSTEM VENTING
