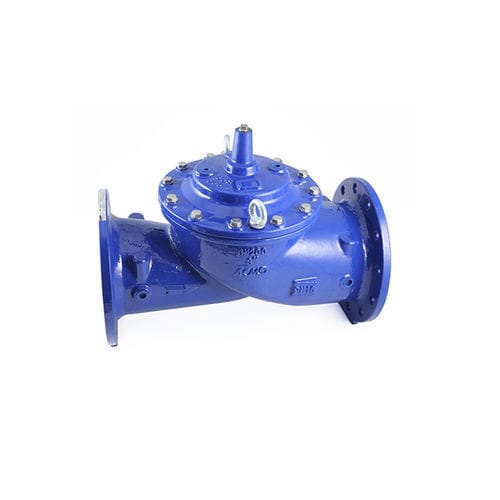

Diaphragm valve M serieshydrauliccontrolregulating
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulic
- Function
- control, regulating
- Media
- for water
- Body
- flange, stainless steel, EPDM, iron, epoxy, coated
- Applications
- for water
- Other characteristics
- ISO
- DN
Max.: 1,000 mm
(39.37 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar, 16 bar, 25 bar
(145 psi, 232.1 psi, 362.6 psi)
Description
Valves are used for an extensive range of applications and are entirely made of ductile iron with internal components in stainless steel.
STANDARDS OF MANUFACTURE
EN 1074-1 VALVES FOR WATER SUPPLY
EN 1074-5 REGULATING VALVES
EN 558 S1 (ISO 5752) FACE TO FACE
EN 1092-2 (ISO 7005-2) DRILLING FLANGES
MATERIALS
BODY DUCTILE IRON EN GJS-500-7 EN 1563 (ISO 945)
COVER DUCTILE IRON EN GJS-500-7 EN 1563 (ISO 945)
OBTURATOR DUCTILE IRON EN GJS-500-7 EN 1563 (ISO 945)
STEM STAINLESS STEEL EN 10088-3
DIAPHRAGM EPDM EN 681-1
BOLTS STAINLESS STEEL EN ISO 3506-1
CORROSION PROTECTION
COATED INSIDE-OUTSIDE (FBE) EPOXY 300 MICRONS
CERTIFIATES
DM 174 (I),
WRAS (UK) – COATING & RUBBERS
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS GRADE “A”
ACCESSORIES
V-PORT THROTTLING PLUG IN STAINLESS STEEL
ANTICAVITATION CAGE IN STAINLESS STEEL
VISUAL POSITION INDICATOR
INDUCTIVE ELECTRICAL LIMIT SWITCH
INTEGRATED AIR RELIEF
MOTORIZED PILOT
SOLENOID VALVE
