Diaphragm pump DS04
airair-drivenself-priming

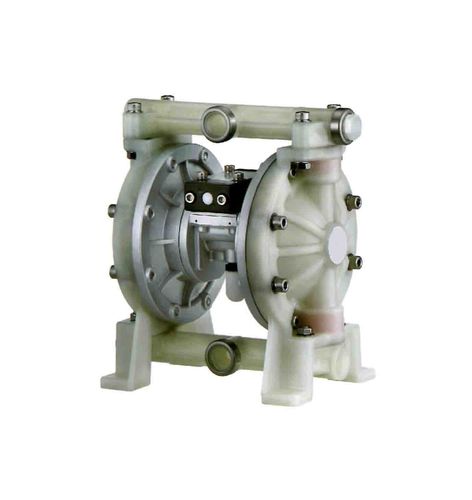

Diaphragm pump - DS04 - Acodex Enterprise Co., Ltd. - air / air-driven / self-priming
Diaphragm pump - DS04 - Acodex Enterprise Co., Ltd. - air / air-driven / self-priming
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
air
Operation
air-driven
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial
Material
PFA
Flow

12.66 us gal/min
(47.92331 l/min)

Pressure

Min.: 0.8 bar
(11.603 psi)

Max.: 7 bar
(101.526 psi)

Length

28 cm
(11 in)

Width

19 cm
(7.48 in)

Height

28 cm
(11.02 in)

Weight

3.5 kg, 4 kg
(7.72 lb, 8.82 lb)

Description

Liquid inlet & outlet - 1/2"PT (BSP) Air inlet - 1/4"PT (BSP) Air outlet - 1/4"PT (BSP) Quantity / cycle - 120ml Solid limit - ¢2mm Air consumption - 400Liter/per min; 14.12Scfm/per min Inlet lift (deep) - 6 m-wet; 3.7m-dry
