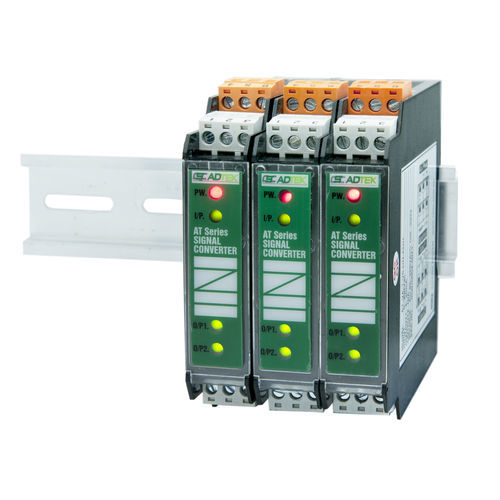

Voltage/current isolator-converter AT-VA

4-20 mA0-10 V2 analog outputs

AT Series Converter AT-VA Input type: AC/DC voltage/current AC/DC Voltage 0~150V, 0~300V, 0~600V(specify) AC/DC Current 0 ~ 5A, 0~1A(specify), DC 0~50mV, 0~60mV, 0~75mV, 0~100mV Primarily designed for use in the general signal conversion and isolation circuit. This section slim design of the converter, in addition to providing two groups of signal output (Isolation) or 24V excitation supply for the transmitter used, the switching power supply willprovide installation convenience. The top and designed power supply, input and output indicators and removable terminal blocks to facilitate on-site construction and working status view. SPECIFICATION: ● Output for 0~5V / 0~10V / 1~5V / 2~10V / 4~20mA / 0~20mA changeable by dip switches and terminals ● Dual different signals output available ● LED indications for power, input and output status ● 0.1% accuracy available in option ● 17.5 mm thin profile and 35mm DIN rail mounting ● CE Approved & RoHS
