Frequency converter AT-FD

DIN railisolated

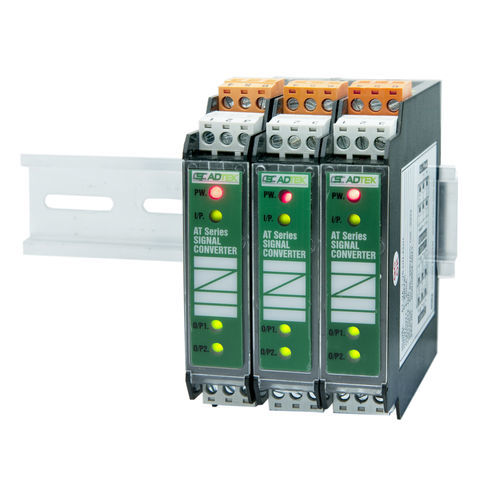

AT-FD Frequency Converter (Single O/P) Frequency Converter is our latest product for AT collection. It is designed for pulse frequency conversion (such as rotational speed, linear speed, and flow) applied on machinery automation. Like other AT products, AT-FD is easily operated. Also, we added microprocessor to AT-FD that enabled the users to adjust the setting range of input frequency according to the actual signal. The setting will be processed through a specific software on PC. FEATURES: - Able to additionally purchase dip switches providing 6 kinds of output signals, 0~5V / 0~10V / 1~5V / 2~10V / 4~20mA / 0~20mA - Complete input/ output/ power isolation - Equipped with LED light of power, input, and output - Offer a wide range of input frequency, 0.1Hz~50KHz. Also, it can be set via the dip switch - For special frequency range, it can be set up by the software installed on the computer - Lightweight appearance, isolation converter: 17.5mm width; DIN rail: 35mm width
