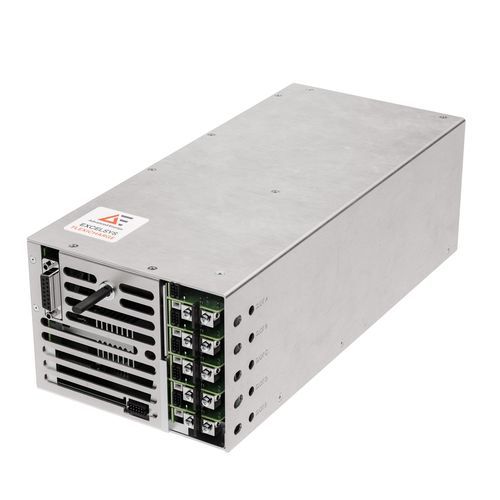

Rack-mount power supply FC1500

AC/DCmultiple-outputvariable-output

The FC1500 medical capacitor charging power supply, with a built-in configurable AC-DC power supply is designed to provide the system power needs for medical laser applications. The FC1500 can provide both capacitor charging and AC-DC low voltage system power (with added low voltage modules) due to its unique design and intelligent control. This functionality provides extra flexibility to power other systems and applications. The FC1500 has unique built-in intelligent control for capacitor charging, higher charge rates, and power limit control. There is added control and monitoring cabability via the analog and PMBus digital intelligent control system. The FC1500 improves end users time to market by simplifying EMI and low leakage current approvals needed at end applications. The FC1500 also has IEC60101-1 3rd edition safety agency approval. Features Capacitor Charger Up to 1500 W and 0 to 1000 VDC. Excellent pulse to pulse repeatability and user power limit control Analog and digital control and monitoring features. AC-DC power supply Up to 800 W. Up to 10 isolated low voltage outputs. Serial and Parallel outputs for higher voltages or current. Analog and digital control and monitoring features. High power density Benefits Full safety agency approvals High power density - up to 1.5 kW capacitor charger power and up to 800 W low voltage power in one unit Programmable charge rates with power limit control and excellent pulse to pulse repeatability Low current leakage and EMI solution for end users - improved time to market Intelligent Digital Power: Access maximum flexibility with analog and digital control and monitoring
