Chassis-mounted power supply LPP200 series

AC/DCsingle-outputwith short-circuit protection

Overview

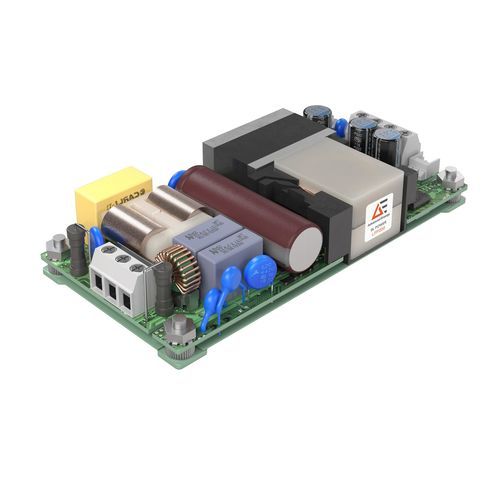

Advanced Energy’s SL Power499 LPP200 Series are compact AC-DC power supplies in an ultra-low profile (0.75") open-frame design. They provide up to 200 W with forced airflow and are intended for space-constrained medical and industrial equipment. Models are available with nominal outputs of 12 V, 24 V, or 48 V. Each unit includes protection against output overvoltage, short circuit, and overload, packaged in a 2" x 4" x 0.75" chassis-mount form factor.

Features

• Ultra-low profile height: 0.75"
• Suitable for Type BF medical applications
• Up to 200 W maximum output power (with airflow)
• Compact dimensions: 2" x 4" x 0.75"
• Medical/industrial safety and emissions compliance
• Operating temperature: -20B0C to 70B0C (with derating)
• 12 V fan output
• High efficiency: ~90% typical
• Output adjustment range: B1 5%

Benefits

• Enables miniaturization of medical and industrial systems where board space is limited
• Reliable performance with low EMI, allowing reduced system size without compromising function
• 4th edition EMC and Class B emissions support reduces regulatory development time and cost
• Compliance for Type BF (Body Floating) medical applications

Nominal outputs

• Available nominal main outputs: 12 V, 24 V, 48 V

Technical specifications

• Output power (W): 200
• Nominal output voltages: 12 V, 24 V, 48 V
• Input voltage (V): 90 to 264 (minimum 90 V, maximum 364 V)
• Maximum output power (W): 200
• Minimum output current (A): 3.92
• Maximum output current (A): 15.67
• Output voltage range (V): 12 to 48 V
• Efficiency: ~90% typical
• Adjustment range: B1 5%
• Fan output: 12 V
• Operating temperature: -20B0C to 70B0C (with derating)
• Protections: output overvoltage, short circuit, overload protection
• Safety / Emissions: medical/industrial grade; suitable for Type BF applications; 4th edition EMC and Class B emissions
• Dimensions (in): 2" x 4" x 0.75"
• Length (in): 4
• Width (in): 2
• Height (in): 0.75
• Mounting type: Chassis Mount
• Warranty: 3 years
