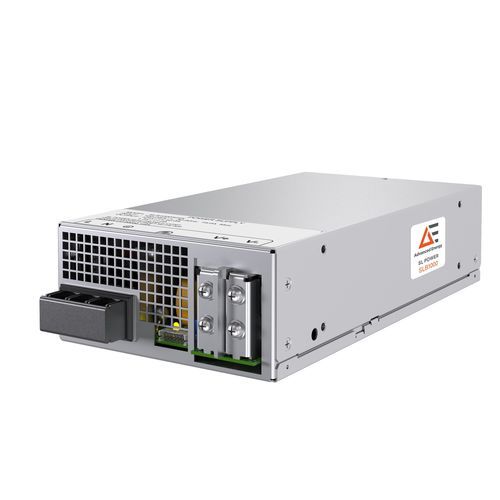

AC/DC power supply SLB1000 series

single-outputSMPSswitching

Product overview
The SLB1000 Series enclosed AC-DC power supply is a single-output, high-power unit providing 1000 W continuous output for industrial and medical applications. The compact enclosed form factor (2.4" x 5.2" x 10.55") integrates variable-speed smart fans for effective thermal management with very low acoustic noise. Nominal output voltages cover 12 V to 48 V.

Features

• 1000 W continuous output power
• Enclosed form factor: 2.4" x 5.2" x 10.55" (H x W x L)
• Operating range: -20 °C to 70 °C with derating
• High efficiency: typical 88%
• Variable-speed smart fans for low acoustic noise
• ±5% output voltage adjustment
• 5 V DC @ 2 A standby output
• DC OK signal and inhibit function

Benefits

• Low acoustic noise suitable for noise-sensitive environments
• High power density: ~7.7 W per cubic inch
• Designed for industrial and medical (BF) safety classifications
• EMI/EMC: CE Class B, RE Class A; EMC per IEC 60601-1-2 4th Edition
• Multiple safety recognitions (UL/CSA62368-1, ANSI/AAMI ES60601-1 BF)
• CE LVD (EN62368-1) and RoHS compliance

Specifications (table)
Output Power (W): 1000
Input Voltage (V): 100–240 VAC (min 100 V, max 264 V)
Operating Temperature (°C): 0 to 70 (note: -20 °C to 70 °C with derating)
Length (in): 10
Width (in): 5.2
Height (in): 2.4
Mounting Type: Enclosed
Min Output Current (A): 16.6
Max Output Current (A): 84
Output Voltage Range (V): 12 V to 48 V (nominal)
Min Output Power (W): 800
Max Output Power (W): 1000
Warranty (years): 3

Technical specifications

• Series: SLB1000
• Single output: nominal options include 12 V, 24 V, 48 V
• Efficiency: typical 88%
• Standby output: 5 V DC @ 2 A
• Control/signals: DC OK, inhibit
• Cooling: variable-speed smart fans for thermal management and low noise
• Certifications: UL/CSA62368-1 (ITE), ANSI/AAMI ES60601-1 (BF) medical recognition, CE LVD (EN62368-1) + RoHS
• EMI/Immunity: CE Class B EMI, RE Class A, EN61000 immunity (Heavy Industrial)
• EMC: IEC 60601-1-2 (4th Edition) for medical applications
