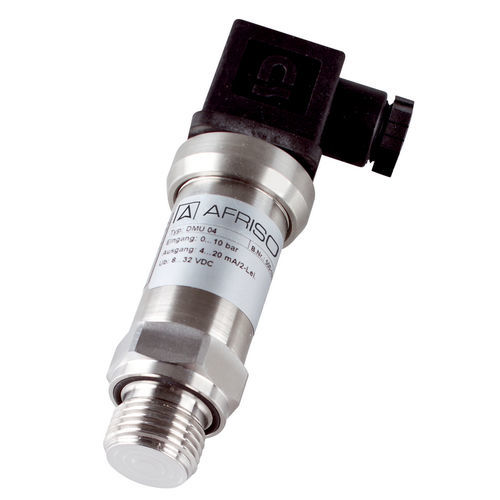

Silicon pressure transducer DMU 04

4-20 mA2-wireG 1/2

DMU 04 CP/MR for hygienic processes Small temperature error Options: Ex, field housing or high temperature version (up to 300 °C) and SIL 2 Application For applications requiring hygienic process connections, materials or processing, especially food technology, pharmaceutical and biotechnology applications. Description Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 4 is equipped with an oil-filled piezo-resistive silicon measuring cell. DMU 04 has safety integrity level SIL 2 (IEC 61508/61511). Technical data Measuring accuracy Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability) Measuring range See ordering table Dynamic characteristics Response time: ≤ 10 ms Process connection G½B DIN 3852 type E with flush diaphragm G1B DIN 3852 type E with flush diaphragm Clamp 1" ISO 2852 Conical dairy fitting DN 25 DIN 11851 Material Housing: Stainless steel 316 L Pressure connection: Stainless steel 316 L Diaphragm: Stainless steel 316 L Supply voltage DC 8 – 32 V Output signal 2-wire, 4–20 mA Load RMax = [(UB – UBMin)/0.02 A] Ω Current input < 25 mA Electrical protection Short circuit proof and protected against reverse polarity Electrical connection Connector and junction box as per ISO 4400 (DIN 43650-A) Degree of protection IP 65 (EN 60529) CE conformity EMC Directive 2014/30/EU RoHS Directive 2011/65/EU Pressure Equipment Directive 2014/68/EU Options Other process connections Other electrical connections Field housing (stainless steel 303) High temperature version up to 300 °C Higher accuracy
