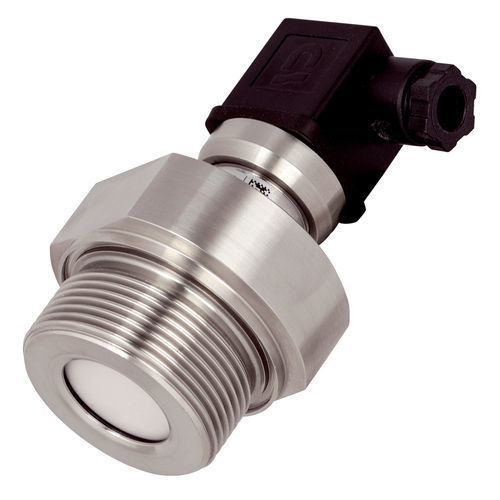

Relative pressure transducer HydroFox® DMU 07

ceramic4-20 mA2-wire

Flush diaphragm Without transmission liquid Mechanically insensitive ceramic sensor Small temperature error High overpressure safety Application For electronic, continuous level measurement of liquids and for pressure measurement of liquids and gases in plant construction. Description Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. HydroFox® DMU 07 uses a capacitance ceramic measuring cell. Options Measuring accuracy Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability) Measuring range See ordering table Temperature error band ≤ 0.1 % FSO/10 K In compensated range -20/+80 °C Dynamic characteristics Response time: ≤ 200 ms Process connection G1½B with flush diaphragm Material Housing: Stainless steel 316 L Pressure connection: Stainless steel 316 L Diaphragm: Ceramic (Al2O3 96 %) Seal: FKM (Viton) Supply voltage DC 9 – 32 V Output signal 2-wire, 4–20 mA Load RMax = [(UB – UBMin)/0.02 A] Ω Current input < 21 mA Electrical protection Short circuit proof and protected against reverse polarity Electrical connection Connector and junction box as per ISO 4400 (DIN 43650-A) Degree of protection IP 65 (EN 60529) CE conformity EMC Directive 2014/30/EU RoHS Directive 2011/65/EU Pressure Equipment Directive 2014/68/EU
