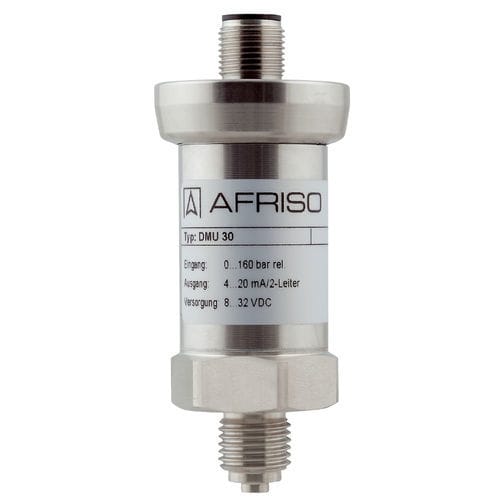

4-20 mA pressure transducer DMU 30

2-wireM12 connector32VDC

Suitable for high overloads Insensitive to pressure peaks Ex version (optional) Application For electronic pressure measurement in machines and systems with technical gases (e.g. oxygen, oil-free, grease-free) and for use in hydrogen applications. Description Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 30 is equipped with a welded stainless steel measuring cell. Technical data Measuring accuracy Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability) Measuring range See ordering table Temperature error band ≤ ± 0.2 % FSO/10 K In compensated range -25/+85 °C Dynamic characteristics Response time: ≤ 10 ms Process connection G¼B (EN 837-1/7.3) G½B (EN 837-1/7.3) ¼-18 NPT Material Housing: Stainless steel 316 L Pressure connection: Stainless steel 316 L Diaphragm: Stainless steel 316 L Seal: Without (welded) Degree of cleanliness: Oil- and grease-free version, based on ISO 15001 Residual particles: No particles > 100 µm (with reference to 10 dm2) Residual grease: Residual grease content < 0.2 mg/dm2 Supply voltage Standard version: DC 8 – 32 V Ex version: DC 10 – 28 V Output signal 4–20 mA, 2-wire Load RMax = [(UB – UBMin)/0.02 A] Ω Current input < 25 mA Electrical protection Short circuit proof and protected against reverse polarity Electrical connection M12 x 1, 4-pin, Cable outlet with PVC cable Degree of protection IP 67 (EN 60529) CE conformity EMC Directive 2014/30/EU RoHS Directive 2011/65/EU Pressure Equipment Directive 2014/68/EU
