- A.G.P. VALVULAS 10 SL

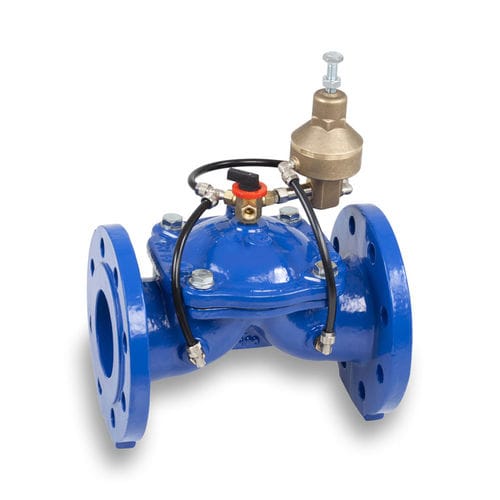

Diaphragm valve 892335+499016hydrauliccontrolpilot
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulic
- Function
- control, pilot
- Body
- flange, metal
- Applications
- pump
- DN
Max.: 300 mm
(11.811 in)Min.: 80 mm
(3.15 in)- Flow rate
Max.: 1,200 m³/h
(42,377.6 ft³/h)Min.: 20 m³/h
(706.29 ft³/h)
Description
Hydraulic control valve used to maintain upstream pressure value constant. The valve opens when the inlet pressure reaches a preset level by means of a three way metal pilot incorporated. This valve controls the inlet pressure and maintains it constant without being affected from upstream flow and pressure variations.
When upstream pressure value is lower than the preset pressure value, the valve closes completely.
Applications
Upstream pressure control.
Pump system protection against excessive demand.
