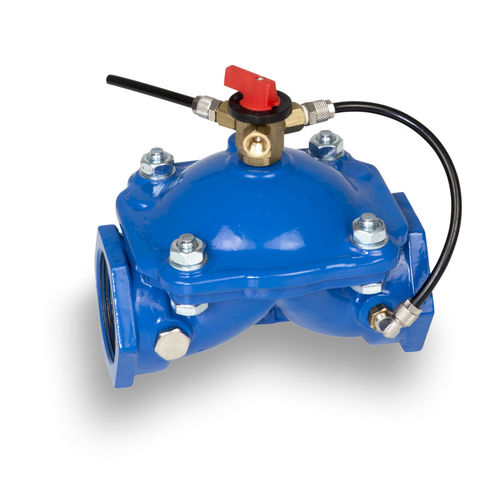

Diaphragm valve 892315+493000manualpilotpressure-reducing
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual
- Function
- pilot, pressure-reducing, selector
- Body
- threaded
- Number of channels
- 3-way
- DN
1.5 in, 2 in, 2.5 in, 3 in, 4 in
- Flow rate
Max.: 150 m³/h
(5,297.2 ft³/h)Min.: 5 m³/h
(176.57 ft³/h)
Description
This valve is operated by line pressure by means of a 3 way selector valve, this selector has the positions “open”, “close” and “auto”.
In the “open” position the valve is fully opened, in the “close” position the valve closes slowly to avoid water hammer. “Auto” is used to receive external orders (from solenoid, pressure reducing pilot, etc.).
Applications
The valve opens and closes in response to a local pressure command.
It is possible to connect the vale to a remote pressure command.
