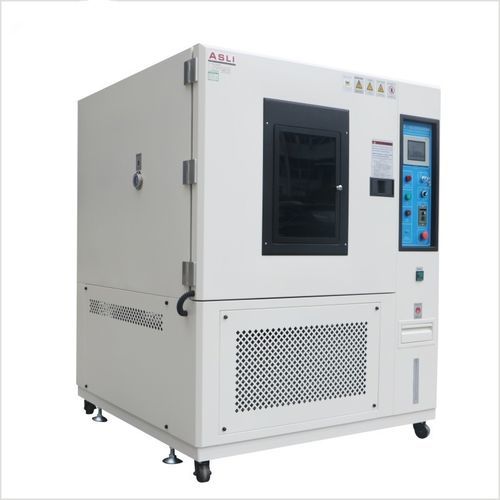

Thermostatic test chamber XL-1000
climatichumiditytemperature

Thermostatic test chamber - XL-1000 - AI SI LI (China) Test Equipment Co., Ltd - climatic / humidity / temperature
Thermostatic test chamber - XL-1000 - AI SI LI (China) Test Equipment Co., Ltd - climatic / humidity / temperature
Thermostatic test chamber - XL-1000 - AI SI LI (China) Test Equipment Co., Ltd - climatic / humidity / temperature - image - 2
Thermostatic test chamber - XL-1000 - AI SI LI (China) Test Equipment Co., Ltd - climatic / humidity / temperature - image - 3
Thermostatic test chamber - XL-1000 - AI SI LI (China) Test Equipment Co., Ltd - climatic / humidity / temperature - image - 4
Thermostatic test chamber - XL-1000 - AI SI LI (China) Test Equipment Co., Ltd - climatic / humidity / temperature - image - 5
Add to favorites
Compare this product
Go to the AI SI LI (China) Test Equipment Co., Ltd website for more information

Characteristics

Type
climatic, thermostatic
Controlled parameter
temperature, humidity
Test type
solar simulation, UV light aging, photostability
Product applications
for automobiles, for materials
Configuration
floor-standing
Light source
UV, with xenon arc lamp
Options and accessories
with temperature and climatic control, with cyclical temperature/humidity control, with irradiation system, with air conditioning unit
Temperature

Max.: 120 °C
(248 °F)

Min.: 38 °C
(100 °F)

Power

Max.: 6,000 W

Min.: 1,000 W

Interior length

1,000 mm
(39.37 in)

Interior height

1,000 mm
(39.37 in)

Interior depth

1,000 mm
(39.37 in)

External length

1,550 mm
(61 in)

External height

2,150 mm
(84.65 in)

External depth

1,550 mm
(61.02 in)

Description

Overview
The UV & Xenon Lamp Aging Test Chamber performs accelerated weathering tests using xenon-arc and UV lamps to simulate solar radiation, temperature and moisture cycles. It is used to evaluate lightfastness, color change and material durability under controlled simulated sunlight conditions.

Application
Suitable for quality development and inspection across coatings, plastics, aluminium-plastic panels, automotive safety glass, textile dyeing and finishing, printing, leather, acrylic, paint, inks and rubber. It helps select new materials, improve formulations and assess durability after material composition changes.

Features
  • Simulates solar spectrum (UV, visible, infrared) using xenon arc lamps.
  • Adjustable light intensity and programmable exposure cycles for realistic aging profiles.
  • Temperature and humidity control with optional water- or air-cooling systems.
  • Rotating sample holder with adjustable RPM to ensure uniform exposure.
  • Designed for full-spectrum colorfastness and weather-resistance testing.

Warranty
One-year free warranty for the complete machine set; lifetime maintenance available.

After-sales service
Technical feedback within 24 hours after receiving the request.

Service
OEM service, design service, buyer label service.

Technical specifications
  • Model: XL-1000
  • Internal Dimension W×H×D (mm): 1000×1000×1000
  • External Dimension W×H×D (mm): 1550×2150×1550
  • Tube Using Life (H): 1500
  • Tube Power: 1 kW / 6 kW
  • Illumination Intensity: Full spectrum; 1200±200 W/m²
  • Lighting Filter Type: Quartz
  • Simulated Test Status: Samples exposed to simulated solar conditions
  • Cooling System: Water-cooled or air-cooled
  • Temperature Control Range (BPT): 40–120 °C (±3 °C); (BST): 38–120 °C (±3 °C)
  • Humidity Control Range: Light: 20%–75% R.H. (±5%); Dark: 60%–95% R.H. (±5%)
  • Rotating Speed of Sample Holder (RPM): 1–5 adjustable
  • Diameter of Sample Shelf (mm): 500 ± 50
  • Sunlight Exposure Cycle: 0.01–999 hours 59 mins
  • Raining Period: 1–240 mins (intermittent, adjustable)
  • Raining Time: 1–9999 mins, adjustable; water spray pressure 70–130 KPa
  • Spray Water Flow (L/min): 1–2.4
  • Exposure Area (cm²): 7500
  • Power Supply: AC 380 V (±10%), 50/60 Hz, 3–5 lines
