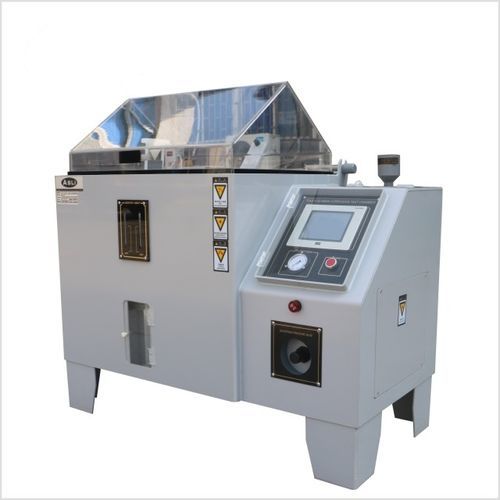

Thermostatic test chamber SH series

climatictemperaturesalt spray

Product Overview
The salt spray test chamber is a climatic simulation device designed to evaluate corrosion resistance of metallic materials and surface treatments, including coatings, galvanizing, organic/inorganic coatings, anodizing, rust-preventive oils and preservative treatments. The chamber meets performance indicators for environmental testing of electrical and electronic products. The neutral salt spray (NSS) configuration can also be used for acetic acid salt spray (AASS) and copper-accelerated (CASS) accelerated corrosion tests.

Standards

• GB/T 2423.17-1993 salt spray test
• GB/T 2423.18-2000 salt spray test
• GB/T 10125-1997 salt spray test
• ASTM B117-97 salt spray test
• JIS H8502 salt spray test
• IEC68-2-11 salt spray test
• IEC68-2-52 1996 salt spray test
• GB.10587-89 salt spray test
• CNS.4158 salt spray test
• CNS.4159 CASS accelerated acetic acid copper salt spray test
• GB/T 12967.3-91 CASS accelerated acetic acid copper salt spray test

Product Parameters
Name: ASTM B117 Salt Spray Corrosion Test Machine
Model: SH-120 | SH-160 | SH-200
Internal Dimension (WxHxD, mm): 1200x500x800 | 1600x500x800 | 2000x500x800
External Dimension (WxHxD, mm): 2100x1400x1300 | 2300x1400x1300 | 2700x1400x1300
Lab Temperature: Saline test (NSS AASS) 35±1 ºC; Corrosion test (CASS) 50±1 ºC
Pressure Bucket Temperature: Saline test method (NSS AASS) 47±1 ºC; Corrosion test (CASS) 63±1 ºC
Lab Capacity (L): 480 | 640 | 800
Saline Capacity (L): 40 | 40 | 40

Features / Technical specifications

• Controller: LCD with PID controller or touch-screen programmable controller for clear, user-friendly operation.
• Construction: Full PVC sheet construction; internal ring uses advanced three-dimensional fin technology for structural rigidity, resistance to deformation, and chemical/temperature resistance suitable for salt spray and copper acetate tests.
• Controller placement: Controller integrated on the same front panel for convenient access.
• Supported test methods: Neutral Salt Spray (NSS), Acetic Acid Salt Spray (AASS), Copper Accelerated Salt Spray (CASS).
• Models: SH-120, SH-160, SH-200 with corresponding internal/external dimensions and chamber capacities as listed above.
• Typical temperature settings: Lab and pressure bucket temperatures for NSS/AASS/CASS as specified in Product Parameters.
