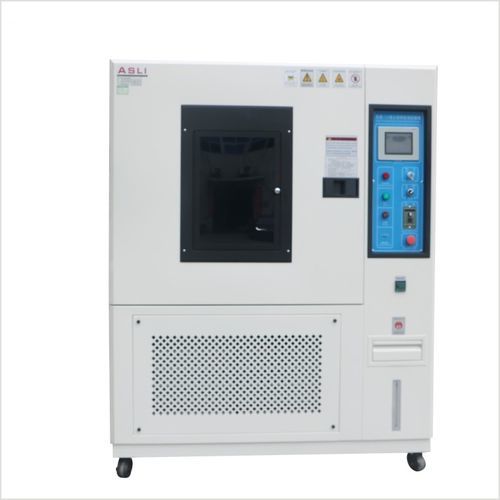

Climate chamber UV-290

thermostatictemperaturelight

Overview
UV accelerated aging test chamber simulates environmental conditions including solar ultraviolet radiation, rain, high temperature, high humidity, dew condensation and darkness. The chamber executes these conditions in programmed cycles and provides automated monitoring of blackboard and water tank temperatures. An optional irradiance measurement and control device (UV-SI-260) allows measurement and stable control of irradiance (e.g. 0.76 W/m2/340 nm).

Design and Construction
Equipped with fluorescent UV lamps that reproduce the UV spectrum of sunlight and expose specimens to alternating cycles of UV light and moisture at controlled elevated temperatures. Dew and rain are simulated by condensing humidity and/or water spray.

Product Parameters
Model: UV-290
Internal dimensions (mm): 1150×500×500
Overall dimensions (mm): 1400×1600×750
Temperature range: Ambient ~ 90°C
Humidity range: ≥95% R.H.
Water Spray: Spraying water
BPT: 30~70°C
Irradiance range: N/A (optional control available)
Distance specimen-lamp: 50 mm
UV wavelength: 320–400 nm (UV-A); 280–320 nm (UV-B)
Lamp power: 40 W/unit, 10 pcs with unit chamber
Power supply: 220V 50Hz
Power consumption: 4.0 kW

Controller
Programmable LCD touch-display controller for temperature, humidity, water spraying and irradiance control. Controller displays cumulative operating time of UV lamps.

Water supply
Automatic water supply with purification and water-saving functions. Water tank capacity: 50 L.

Sensors
Temperature sensor: PT-100 Class A, resolution ±0.01 °C. Humidity measurement: dry/wet bulb sensors, resolution ±1% RH. Optional irradiance radiometer: UV-SI-260.

UV Lamp
Chamber equipped with 8 air-cooled UV lamps, 40 W each. Lamp length: 1160 mm. Recommended replacement after approx. 1600 hours.

Safety protection
Humidifier dry-combustion protection; independent over-temperature protection; water shortage protection; over-current protection and circuit breaker; earth leakage protection.

Application
Designed for accelerated weathering and exposure testing of non-metallic materials to evaluate performance under simulated sunlight, moisture and temperature cycles.

Power supply and Wiring
220V ±10%, 50 Hz, single-phase three-line supply.

Technical specifications

• Model: UV-290
• Internal dimensions (mm): 1150×500×500
• Overall dimensions (mm): 1400×1600×750
• Temperature range: Ambient ~ 90°C
• Humidity range: ≥95% R.H.
• Water Spray: Spraying water; Water tank: 50 L
• BPT: 30–70°C
• Distance specimen-lamp: 50 mm
• UV wavelength: 320–400 nm (UV-A); 280–320 nm (UV-B)
• Lamp power/count: 40 W/unit, 10 pcs per unit chamber (note: chamber equipped with 8 air-cooled lamps)
• Power supply: 220V 50Hz; Power consumption: 4.0 kW
• Temperature sensor: PT-100 Class A (±0.01 °C)
• Humidity sensor: Dry/wet bulb (±1% RH)
• Optional irradiance control and radiometer: UV-SI-260
• Safety features: dry-combustion, over-temperature, water shortage, over-current, earth leakage protections
