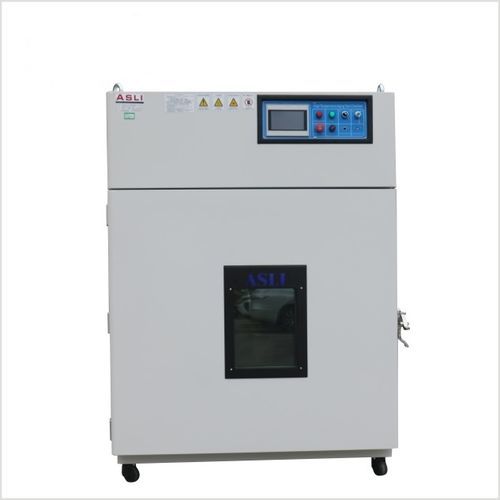

Cabinet oven RHD series

curingheat treatmentdrying

Product Description
High-temperature ovens are used where temperatures of 300°C and above are required. The RHD series 300°C high-temperature drying oven is designed for drying, baking, heat treatment and disinfection. It can be filled with inert gas for processing complex materials and is suitable for industrial, mining, laboratory and research applications.

Applications

• Drying and curing of materials
• Baking and heat-treatment tests
• Disinfection and sterilization
• Laboratories, research institutes, light industry and mining

Product Parameters

• Models: RHD-45 / RHD-60 / RHD-90 / RHD-120
• Internal dimension W×H×D (mm): 450×400×400; 500×600×500; 600×900×500; 800×1200×700
• External dimension W×H×D (mm): 650×900×550; 700×1200×650; 850×1600×700; 1200×1680×900
• Interior material: SUS 304 stainless steel
• Exterior material: stainless steel or cold-rolled steel with paint coating
• Temperature range: R.T. to 200°C standard (300–500°C optional)
• Indication resolution / temperature uniformity: 0.1°C / ±2.0°C (at 100°C)
• Control accuracy: ±0.5°C
• Heating time: R.T. to 200°C in approx. 35 minutes
• Control method: Micro PID + SSR + Timer
• Shelves: two layers
• Viewing window: available for R.T. to 200°C models; not available for 200–500°C range
• Power supply: AC 220V 50/60Hz or AC 380V 50/60Hz

Features

• Automatic temperature control with digital thermal sensor
• High-performance thermal insulation to reduce energy consumption
• Preset temperature function and digital LED display
• Indicator flashes when preset temperature is reached
• Circulation fan for uniform temperature distribution

Technical specifications

• Options: customizable internal dimensions; programmable touchscreen LCD controller available
• Inert-gas fill option for specific processes
• Certification: CE option
