Climate chamber SH series

thermostatictemperaturehumidity

Description

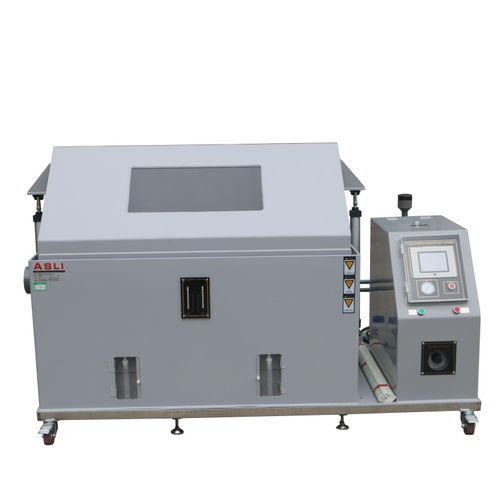

Programmable touchscreen salt spray (fog) test chamber for accelerated corrosion testing of coated samples. The chamber reproduces saline atmospheres (NSS/ACSS/CASS) to evaluate the appearance of corrosion products and predict coating performance; required test duration depends on the coating's corrosion resistance.

Product Description
Designed for assessment of corrosion and erosion resistance after surface treatments such as electroplating, anodizing, spray coating and anti-rust oil. Suited to R&D, quality control and production inspection where repeatable salt spray exposure is required.

Salt Spray Fog Testing Chamber Features:

• Programmable touchscreen control with PID temperature regulation (±0.1°C) for repeatable test profiles.
• Automatic or manual water replenishment with low-water alarm and dual over-temperature protection.
• High-precision glass spray nozzle and tapered spray tower for uniform mist distribution and minimal NaCl crystallization.
• Laboratory direct steam heating for even temperature rise and reduced standby time.
• Saturated tank in SUS #304 stainless steel for reliable heating and humidification.
• Standard saline concentration 5%; water pH 6.5–7.2 (liquid). Spray modes: continuous or programmable.
• Compressed air requirement 1.0–6.0 Kgf; spray volume 1.0–2.0 ml/80 cm2/h (measured over ≥16 h).
• Power: AC220V, single phase, 3 lines, 15A.

Product Parameters
Model: SH-60, SH-90, SH-120, SH-160, SH-200
Internal Dimension W*H*D (mm): SH-60: 600*400*450; SH-90: 900*600*500; SH-120: 1200*800*500; SH-160: 1600*800*500; SH-200: 2000*1000*500
External Dimension W*H*D (mm): SH-60: 1100*600*1200; SH-90: 1400*950*1200; SH-120: 1900*1300*1400; SH-160: 2300*1300*1400; SH-200: 2700*1500*1500
Lab Temperature: Saline test (NSS/ACSS) 35±1°C; Corrosion test (CASS) 50±1°C
Pressure Bucket Temperature: NSS/ACSS 47±1°C; CASS 63±1°C
Lab Capacity (L): SH-60: 110; SH-90: 270; SH-120: 500; SH-160: 800; SH-200: 1500
Saline Capacity (L): SH-60: 15; SH-90: 25; SH-120: 40; SH-160: 40; SH-200: 40
Saline Concentration: 5% NaCl (add 0.26 g CuCl2·2H2O per L of 5% NaCl where required)
Compressed Air Pressure (Kgf): 1.0–6.0
Spray Volume: 1.0–2.0 ml/80 cm2/h (average over ≥16 h)
Spray Form: Continuous or programmable spraying
Power: AC220V, 1 phase, 3 lines, 15A
Weight (Kg): SH-60: 65; SH-90: 80; SH-120: 120; SH-160: 160; SH-200: 200

Characteristics / technical specifications

• Models available: SH series (SH-60, SH-90, SH-120, SH-160, SH-200).
• Control: Programmable touchscreen, digital PID temperature controller (±0.1°C) for stable conditions.
• Spraying system: High-precision glass nozzle, tapered spray tower for uniform deposition.
• Safety and supply: Automatic/manual water addition, low-water alarm, double over-heat protection.
• Test conditions: NaCl 5%, pH 6.5–7.2; temperatures and pressures per standard NSS/ACSS/CASS methods as listed.
• Installation requirements: Compressed air 1.0–6.0 Kgf; power AC220V single-phase 15A.
• Materials: Saturated bucket in SUS #304 stainless steel; laboratory direct steam heating.
