Water pump CHEMICOR Series
air-drivenself-primingdouble-diaphragm

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
air-driven
Priming
self-priming
Technology
double-diaphragm
Domain
industrial, chemical
Applications
control, process
Material
stainless steel, steel
Other characteristics
compact, dry, integrated
Flow

Max.: 24 m³/h
(847.552 ft³/h)

Min.: 4.5 m³/h
(158.916 ft³/h)

Description

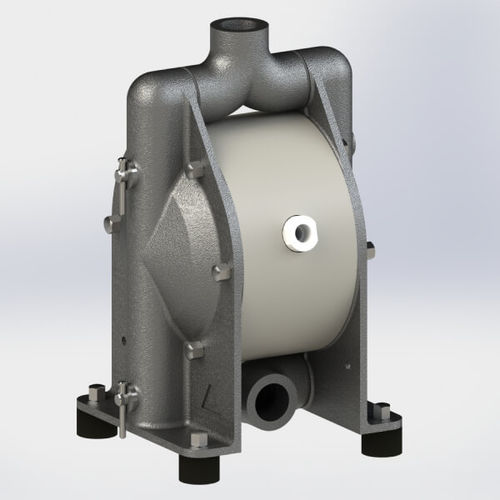

When developing Almatec® CHEMICOR Series Stainless-Steel Air-Operated Double-Diaphragm (AODD) Pumps, special attention was paid to the shape of the product chambers. The result is a pump design that offers soft changes in direction, smooth flows and no dead corners. The pump image shows a model with optional draining system. CHEMICOR Series pumps are manufactured from stainless steel 1.4408/SS316 (G-X 6 CrNiMo 18 10), which is a cast steel that is resistant to corrosion and acids, and is frequently used for fittings and pump casings because of its good general chemical stability. This material in a precision lost-wax casting is used for the wetted housing parts of the CHEMICOR Series. The lost-wax process is a complex casting process yielding a smooth and dense surface with increased resistance to corrosion. Self-priming and dry running Gentle displacement Can be infinitely controlled via the air volume Unattended operation with long service life Compact design Easy to startup Integrated muffler Models available with FDA, USP Class VI, EC1935/2004, ATEX approval Optional equipment available Three sizes: AD 20, AD 32, AD 50 Max. capacities 4.5 / 9 / 24 m3 /h (19 / 38 /105 gpm) Wetted housing parts made of stainless-steel precision casting 1.4408 Special shape of the product chambers Pump casing with only two joint faces Freely turnable suction and discharge ports No drives, rotating parts or shaft seals Ball valves for liquids containing solids Maintenance-free PERSWING P® air control system without dead center Composite diaphragms with integrated metal core and no diaphragm discs
