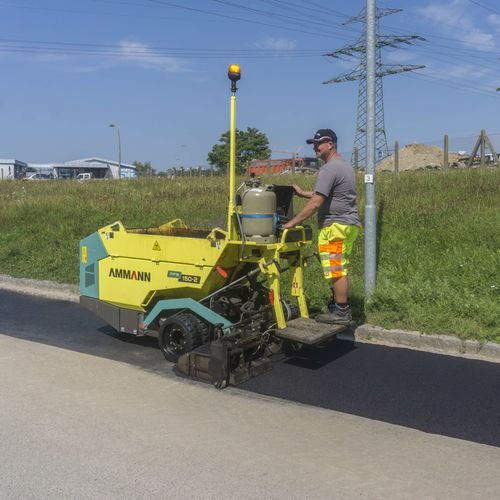

Asphalt paver AFW 150-2

wheeledfor roads

The AFW 150-2 is a unique machine that has no competitors on the market. The tight turning radius and clearance width make it ideal for paving footpaths and handling repair work in narrow surroundings. The paver is easy to transport and allows a fast set-up on the jobsite. The AFW 150-2 is a three wheel paver: two in the rear to enable traction and one in front for steering. The fixed hopper can be side-loaded with a skid steer. The air-cooled diesel engine with electric start / stop is integrated with the hydraulic pumps. The hydrostatic transmission is engaged by a variable-flow pump that feeds two orbital motors fitted to the planetary drives of the wheels. A hydraulic control, mounted on the variable flow pump, enables smooth starts and stops. The paver also features hydraulic steering, easily controlled by the new steering wheel. HYDRAULICAL EXTENDABLE SCREED The new -2 Generation of the AFW 150 features an hydraulic extendable screed, making operation even easier for the crew. With extensions of 2 × 175 mm the paving width can be extended up to 1650 mm in total. ERGONOMIC OPERATOR STATION A complete new operator station makes the work with the AFW 150-2 easier and allows new operators to get up to speed quickly. The intuitive dashboard and an ergonomic steering wheel allow simple operation even in stressful situations on site. OPTIMIZED MATERIAL FLOW With the AFW 150-2 you are guaranteed that you have the right amount of material delivered to your screed at any time. The material flow has been optimized by the use of a high quality chain belt conveyer as well as the enlarged auger with 120 mm diameter.
