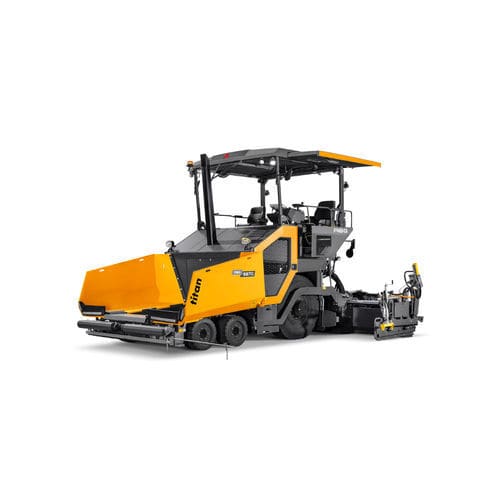

Asphalt paver ABG 6870

wheeledfor vehiclesfor construction equipment

Overview
The ABG 6870 is a wheeled asphalt paver by Ammann designed for traction on difficult terrain. Large rear wheels (available in 4x6 or 6x6 tyre configurations) deliver high tractive force. A load-dependent torque control transfers power between the front drive wheels to prevent wheel spin. The machine provides high production, manoeuvrability and a travel speed up to 20 km/h.

Highlights

• Wheeled asphalt paver with rear wheel configurations 4x6 or 6x6
• Load-dependent torque control to prevent wheel spin
• Paving width range 2.5–9 m and paving output up to 700 t/h
• Travel speed up to 20 km/h for efficient site transfers
• Independent rear-wheel drives and active steering

Standard equipment

• Volvo (Deutz) diesel engine D6J, Stage V
• Electronic drive control
• Independent rear wheel drives; driven front axle 2x4
• Hydraulic ride levelers and active steering
• Rear wheels with ballast

Optional equipment

• Driven front axle 4x4
• Heavy-duty auger; auger extensions and additional auger bearings
• Soft Dock and Smart Dock systems
• Individually operating hopper wings
• Hydraulically operated front apron; protective half shells for auger shaft

Specifications

• Brand: Ammann
• Model: ABG 6870
• Emission stage: Stage V
• Engine: Volvo (Deutz) D6J, 129 kW @ 2000 RPM
• Electrical system: 24 V
• Fuel tank capacity: 200 L
• Basic paving width: 2.5 m; Maximum paving width: 9 m
• Paving output: 700 t/h
• Travel speed: up to 20 km/h
