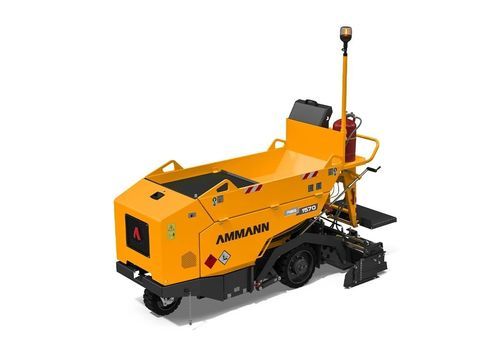

Asphalt paver ABG 1570

wheeled

Overview
The ABG 1570 is a compact mini paver designed for paving in confined areas. Its tight turning radius and narrow clearance make it suitable for footpaths, cycle tracks and repair works where space is limited. The unit is transport-friendly and allows quick setup on site.

Key dimensions & performance

• Basic paving width: 0.95 m
• Maximum paving width: 1.65 m
• Minimum screed paving width (with reduction plates): 250 mm [9.8 in]
• Paving output: 35 t/h
• Turning radius / clearance width: 950 mm (turning radius referenced)
• Maximum travel speed: 25 m/min

Standard features

• Automatic gas burner ignition and temperature control
• Hydraulically extendable screed
• Reduction plates for screed paving width to 250 mm [9.8 in]
• Hydrostatic transmission

Options

• Mechanical extensions (2 × 175 mm [6.8 in]) up to 1650 mm [65 in]
• Vibrating system
• Twin wheels
• Hopper filling assist
• Additional auger LED light
• Front wheel scraper
• Special colour

Engine / Drive - Technical specifications
Emission stage: Stage V
Manufacturer: Hatz
Engine model: 1B50E
Engine cooling system: Air cooling
Power output (ISO): 7.6 kW
Fuel tank capacity: 5 L
Hydraulic oil capacity: 11 L

Technical specifications

• Model: ABG 1570
• Manufacturer (machine): Ammann
• Engine manufacturer: Hatz
• Engine model: 1B50E
• Emission stage: Stage V
• Power output (ISO): 7.6 kW
• Fuel tank capacity: 5 L
• Hydraulic oil capacity: 11 L
• Basic paving width: 0.95 m
• Maximum paving width: 1.65 m
• Minimum screed width with reduction plates: 250 mm
• Paving output: 35 t/h
• Maximum travel speed: 25 m/min
