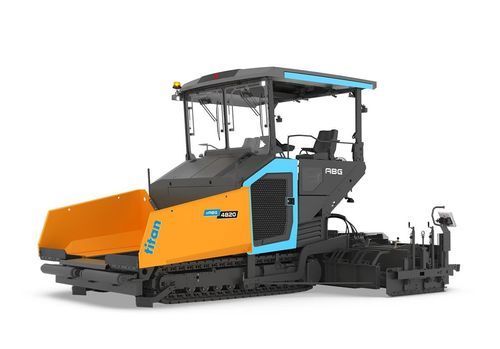

Asphalt paver eABG 4820

trackedfor construction equipment

Overview
The eABG 4820 is the largest electric-drive paver on the market. The machine delivers high daily output while greatly reducing emissions and noise, making it suitable for emission- and noise-sensitive job sites. Key built-in features include a Variomatic screed, wide paving widths and a powerful traction battery that enables a full shift of operation.

Key highlights

• Daily output: up to 1,200 tonnes per day
• CO₂ reduction: approx. 70% reduction in total machine well-to-wheel CO₂ emissions
• Variomatic screed with paving widths up to 6.5 m (basic width 2.5 m)
• Paving output: up to 500 t/h
• Designed for emission- and noise-sensitive job sites

Standard

• Penta High Voltage system with 270 kWh traction battery capacity
• Electronic drive control
• Lifetime lubricated crawler track rollers
• Forged and hardened crawler track links
• Automatic track tensioner
• Bolt on rubber pads
• Large truck push rollers with 160 mm Ø
• Four individual hydrostatic drives for conveyors and augers

Options

• Individual operating hopper wings
• Hydraulically operated front apron
• Reversible conveyor
• Hydraulic auger height adjustment
• Proportional Ultrasonic Sensor auger control
• Central lubrication
• Light truck push rollers with 110 mm Ø
• Protective half shells

ENGINE (selected table)
Emission stage: e-Drive
Manufacturer: Penta
Engine Model: PMSM
Nominal speed: 2 600 / 3 000 RPM
Power output ISO: 99 kW
Electrical system: 600 V

Product description
The eABG 4820 is an electric paver that combines the sustainability of an electric-drive solution with the production capabilities expected from a traditional paver. It achieves industry-leading tonnes placed per day for an electric paver and is engineered for high productivity with low operating emissions. The traction battery capacity and electrical architecture enable extended operation for a full shift, while systems such as electronic drive control, four hydrostatic drives and robust undercarriage components support reliable operation and reduced service intervals.

Caractéristiques / spécifications techniques

• Model: eABG 4820
• Basic paving width: 2.5 m
• Maximum paving width: 6.5 m
• Paving output: up to 500 t/h
• Daily output (typical): up to 1,200 t/day
• CO₂ reduction: ~70% well-to-wheel vs. conventional machine
• Traction battery capacity: 270 kWh (Penta High Voltage system)
• Electrical system: 600 V
• Power output (ISO): 99 kW
• Engine type: PMSM (per table)
• Nominal speed: 2,600 / 3,000 RPM
• Drive components: electronic drive control; four individual hydrostatic drives for conveyors and augers
• Undercarriage: lifetime-lubricated track rollers; forged and hardened track links; automatic track tensioner
• Conveyor/auger features: reversible conveyor (option); hydraulic auger height adjustment (option); ultrasonic auger control (option)
• Screed: Variomatic screed family (VB 78 ETC, VB 79 ETC, VB 88 ETC listed)
• Noise / emissions: emissions-free paver operation at point of use; some CO₂ may be generated depending on electricity source
