Asphalt paver ABG 2820

trackedfor construction equipmentfor tracked vehicles

Overview

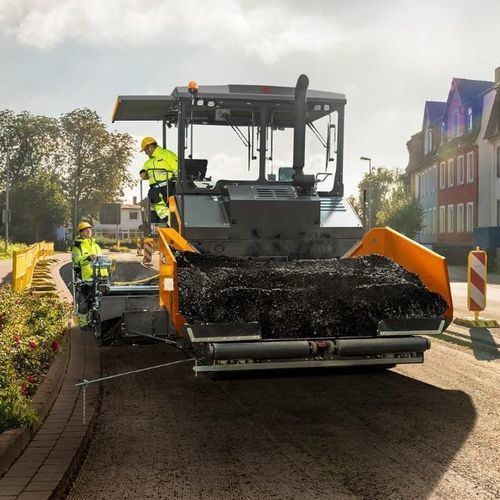

The Ammann ABG 4820 is a compact tracked paver with a 2.5 m basic paving width. Designed for urban streets and larger interurban projects, it can be transported together with a roller and achieves paving widths up to 6.5 m while optimising fuel consumption and lifecycle costs.

Key metrics

• Basic paving width: 2.5 m
• Maximum paving width: 6.5 m
• Paving output: 500 t/h
• Machine type: Tracked paver

Standard

• Volvo (Deutz) diesel engine, EU Stage V
• Electronic drive control
• Lifetime-lubricated crawler track rollers
• Forged and hardened crawler track links
• Automatic track tensioner
• Bolted smart rubber pads
• Large push rollers (Ø 160 mm)
• Four independent hydrostatic drives for conveyors and augers

Options

• Individually operated hopper wings
• Hydraulically operated front apron
• Reversible conveyor
• Hydraulic auger height adjustment
• Proportional ultrasonic auger control
• Centralized automatic lubrication
• Light push rollers (Ø 110 mm)
• Protective half-shells

Engine / Technical table
Emission stage: Stage V
Manufacturer: Volvo (Deutz)
Engine model: D4J
Nominal speed: 2200 RPM
Power output (ISO): 98 kW
Electrical system: 24 V
Fuel tank capacity: 180 L

Additional product information
ABG screeds, including vibratory screeds with single or dual tamper bar solutions and the high-density DuoTamp table, improve mat quality and reduce the need for downstream compaction. Choose screed options to match required finish and production rates.

Technical specifications

• Model: ABG 4820
• Brand: Ammann
• Basic paving width: 2.5 m
• Maximum paving width: 6.5 m
• Paving output: up to 500 t/h
• Engine: Volvo (Deutz) D4J, 98 kW, Stage V
• Nominal engine speed: 2200 RPM
• Electrical system: 24 V
• Fuel tank capacity: 180 L
• Drive: Electronic drive control with independent hydrostatic drives
• Undercarriage: lifetime-lubricated rollers, forged/hardened links, automatic tensioner
• Material handling: conveyors and augers with independent drives; reversible and dual-conveyor options available
