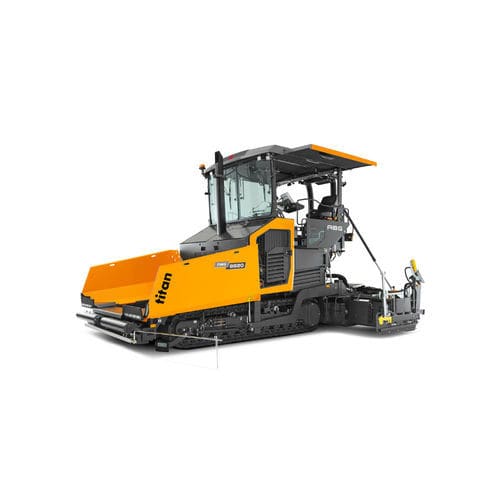

Asphalt paver ABG 8820

crawlerconcrete

Overview
Tracked asphalt paver designed for high-production applications. A 13 m paving width, large hopper and powerful engine target demanding jobsites such as airports and highways.

Applications

• High-production paving on highways, airports and large civil works
• Continuous asphalt mat construction with wide screed configurations

Key metrics

• Basic paving width: 98 in (2.5 m)
• Nominal paving width: 13 m
• Maximum paving width: 13 m (511.8 ft-in)
• Paving output: 1213 tons/h
• Emission stage: Tier 4f / EU Stage V

Standard

• Volvo (Deutz) diesel engine, EU Stage V
• Electronic drive control
• Lifetime-lubricated crawler track rollers
• Forged and hardened crawler track links
• Automatic track tensioner
• Heavy push rollers
• Proportional conveyor sensors
• Proportional ultrasonic auger control

Options

• Smart Dock
• Soft Dock
• Individual operating hopper wings
• Hydraulically operated front apron
• Protective half shells for auger shaft
• Auger extensions and additional auger bearings
• Heavy-duty conveyor cover

Screed
ABG screeds (single or dual tamper bar options) provide proven vibratory levelling solutions for achieving consistent mat finish across wide paving widths. Selection of screed and tamper configuration adapts the finisher to specific paving material and project requirements.

ENGINE — Technical table
Emission stage: Tier 4f / EU Stage V
Manufacturer: Volvo (Deutz)
Engine model: D8J
Nominal speed: 2000 RPM
Power output (ISO): 272 kW
Electrical system: 24 V
Fuel tank capacity: 250 L (66 US gal)

Notes
Designed for demanding production jobsites. The combination of wide paving width, large hopper and high engine output is intended for continuous, heavy-duty paving operations.

Technical specifications

• Model: ABG 8820
• Type: Tracked asphalt paver
• Basic paving width: 98 in (2.5 m)
• Nominal/max paving width: 13 m
• Paving output: 1213 tons/h
• Emission stage: Tier 4f / EU Stage V
• Engine manufacturer/model: Volvo (Deutz) D8J
• Power (ISO): 272 kW
• Nominal engine speed: 2000 RPM
• Electrical system: 24 V
• Fuel tank capacity: 250 L (66 US gal)
• Standard features: electronic drive control; lifetime-lubricated crawler rollers; forged & hardened track links; automatic track tensioner; heavy push rollers; proportional conveyor and ultrasonic auger control
• Available options: Smart Dock; Soft Dock; individual hopper wings; hydraulically operated front apron; auger protection and extensions; heavy-duty conveyor cover
