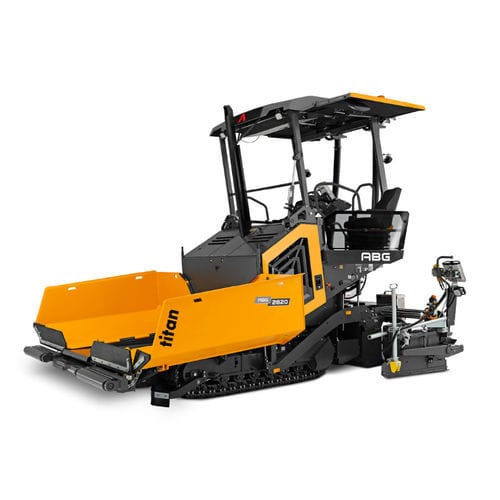

Asphalt paver ABG 2820

trackedfor vehiclesfor construction equipment

Overview
Compact tracked asphalt paver designed for narrow urban streets and repair work. The Ammann ABG 2820 combines a 1.5 m base width with options to reach up to 4.5 m paving width while integrating proven ABG technology for consistent mat quality and site maneuverability.

Key benefits

• Compact footprint for confined urban and repair jobs
• Compatible with ABG screeds for high-quality mat finish
• Stage V engine and efficient load-dependent drive for compliance and fuel efficiency
• Durable undercarriage components for long service intervals

Standard

• Volvo (Kubota) diesel engine EU Stage V
• Electronic drive control
• Load-dependent efficient drive system
• Automatic track tensioner
• Lifetime lubricated crawler track rollers
• Forged and hardened crawler track links
• Smart rubber pads
• Proportional conveyor control

Options

• Two independent conveyors
• Reversible conveyor
• Individual operating hopper wings
• Mechanically operated front apron
• Hydraulically operated front apron
• Push-roller D110 plus 100 mm more space
• Proportional ultrasonic auger control
• Lateral emergency stop

Engine (table)
Emission stage | Stage V
Manufacturer | Volvo (Kubota)
Engine Model | D3.8H
Nominal speed | 2200 RPM
Power output ISO | 55.4 kW
Electrical system | 24 V
Fuel tank capacity | 110 L

Application & screed
ABG screeds (single or dual tamper bar solutions) are available to optimize mat density and surface finish. Choose screed configuration to match application: narrow urban streets, utility cuts or larger resurfacing tasks.

After Sales & Services
Ammann-trained technicians and genuine parts are available via the global dealer network for scheduled maintenance and rapid support to maximise uptime.

Technical specifications

• Basic paving width: 1.5 m
• Maximum paving width: 4.5 m
• Paving output: 330 t/h
• Engine model: D3.8H (Volvo/Kubota)
• Power output ISO: 55.4 kW
• Emission stage: Stage V
• Electrical system: 24 V
• Fuel tank capacity: 110 L
