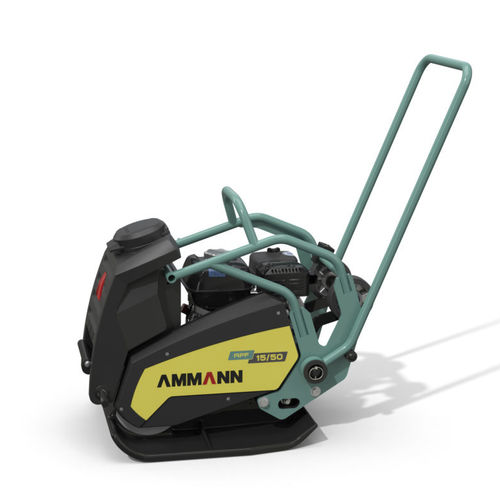

Forward travel vibratory plate APF 15/50

compactinggasoline engine

Overview
The Ammann APF 15/50 is a forward-moving vibratory plate compactor designed for paving stones and asphalt work. It pairs a generously sized, maintenance-free exciter with low hand-arm vibration (HAV) levels to balance compaction performance and operator comfort.

Key benefits

• Strong forward movement and climbing ability enabled by the maintenance-free exciter unit
• Industry-leading low HAV levels to reduce operator fatigue
• Modular options (rubber mat, transport wheels, water sprinkler) for versatile site applications

Standard

• Petrol engine option: Honda GX 160 (3.6 kW)
• Petrol engine option: Vanguard (3.7 kW)
• Petrol engine option: Rato (3.8 kW)
• Low-vibration handle
• Ammann colour scheme
• Operating weight: 84 kg (Honda) / 88 kg (Vanguard / Rato)

Options

• Rubber mat (paving protection)
• Transport wheels
• Water sprinkler system
• Hour meter

Engine specifications (summary table)
Manufacturer | Engine model | Fuel | Power output ISO | Nominal speed
Honda | GX 160 | Petrol | 3.6 kW | 3600 rpm
Rato | R180 | Petrol | 3.8 kW | 3600 rpm
Vanguard | 160 | Petrol | 3.7 kW | 3600 rpm

Comfort and output
The large, maintenance-free exciter delivers superior forward travel, speed and climb performance. The low-vibration handle reduces transmitted HAV, improving operator endurance during extended tasks. Optional accessories adapt the plate to paving or asphalt workflows.

Support & downloads (available)
Datasheet and product brochures are available via the manufacturer's support/download section for the APF 15/50.

Technical specifications

• Model: APF 15/50
• Type: Forward-moving vibratory plate compactor
• Operating weight: 84 kg (Honda) / 88 kg (Vanguard, Rato)
• Max vibration frequency: 100 Hz
• Max centrifugal force: 15 kN
• Engine options: Honda GX 160 (3.6 kW), Vanguard (3.7 kW), Rato (3.8 kW)
• Nominal engine speed: 3600 rpm
• Fuel: Petrol
• Available options: rubber mat, transport wheels, water sprinkler system, hour meter
