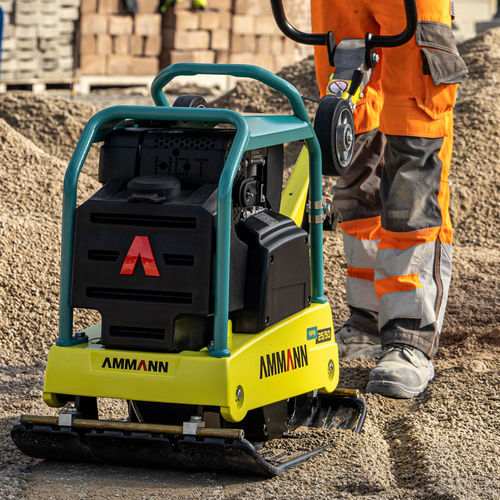

Reversible vibratory plate APR 25/50

bidirectionalcompacting

Overview
The APR 25/50 is a reversible vibratory plate designed for a variety of applications and surfaces. An optional water sprinkler system is available for asphalt work. Hydrostatic forward and reverse steering facilitates directional changes and compaction in confined areas.

Applications and operation
Suitable for trench work and open-area compaction. Hydrostatic drive enables quick changes of travel direction and controlled compaction in tight spaces.

Performance data

• Operating weight: 135 kg
• Max vibration frequency: 95 Hz
• Max centrifugal force: 25 kN

Standard

• Working width 380 mm
• CE conformity
• Standard hydraulic oil
• Ammann color design and decals
• Central lifting point

Options

• Working width 500 mm
• Hour counter
• Transport wheels
• Paving pad
• Water sprinkling system 500 mm
• Maintenance kit
• Customer color scheme
• Telematics ServiceLink Light

Engine specifications
Manufacturer: Hatz
Engine model: 1B20
Fuel: Diesel
Power output (ISO): 3.1 kW
Nominal speed: 3000 rpm
Fuel consumption: 0.9 L/h

Technical specifications

• Type: reversible vibratory plate
• Operating weight: 135 kg
• Working width (standard): 380 mm
• Working width (option): 500 mm
• Max vibration frequency: 95 Hz
• Max centrifugal force: 25 kN
• Engine: Hatz 1B20, Diesel, 3.1 kW at 3000 rpm
• Fuel consumption: 0.9 L/h
• Hydrostatic forward/reverse steering for directional changes
• Optional water sprinkling system (500 mm), transport wheels, paving pad, hour counter, maintenance kit
• Optional customer color scheme and Telematics ServiceLink Light
