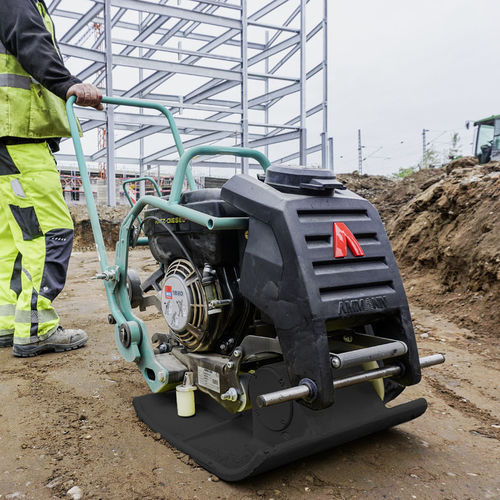

Forward travel vibratory plate APF 20/50

compactinggasoline engine

Overview
The APF 20/50 is the most powerful forward-moving vibratory plate in the APF range. Its technologically advanced exciter unit is maintenance-free and provides strong forward-moving force to improve productivity on challenging materials and steep grades.

Key data

• Working width: 500 mm
• Operating weight: 88 kg
• Max vibration frequency: 90 Hz
• Centrifugal force: 18 kN (text) / 20 kN (pictogram)

Standard

• Working width 500 mm
• Low-vibration handle
• CE conformity
• Standard hydraulic oil
• Ammann color design and decals
• Central lifting point

Options

• Hour counter
• Transport wheels
• Paving pad
• Water sprinkling system 500 mm
• Maintenance kit
• Customer color scheme
• Certificate of origin
• Biodegradable hydraulic oil

Engine (table)
Field | APF 20/50 (Honda) | APF 20/50 (Rato) | APF 20/50 (Hatz)
Manufacturer | Honda | Rato | Hatz
Engine model | GX 160 | R180 | 1 B 20
Fuel | Petrol | Petrol | Diesel
Power output ISO | 3.4 kW | 3.8 kW | 3.2 kW
Nominal speed | 3250 rpm | 3250 rpm | 3250 rpm

Additional information
The plate is available with petrol (Honda, Rato, Vanguard) or diesel (Hatz) engines. Tool-less daily maintenance, a self-cleaning base plate and compact dimensions support quick handling and service. The maintenance-free exciter unit is designed to deliver strong forward-moving power and reliable performance on steep slopes and in demanding materials.

Technical specifications

• Model: APF 20/50
• Working width: 500 mm
• Operating weight: 88 kg
• Max vibration frequency: 90 Hz
• Centrifugal force: 18 kN (text) / 20 kN (pictogram)
• Engine options: Honda GX160 (petrol, 3.4 kW), Rato R180 (petrol, 3.8 kW), Hatz 1 B 20 (diesel, 3.2 kW)
• Nominal engine speed: 3250 rpm
• Standard features: low-vibration handle, CE conformity, central lifting point
• Options: hour counter, transport wheels, paving pad, water sprinkling system 500 mm, maintenance kit, customer color scheme, certificate of origin, biodegradable hydraulic oil
• Maintenance: toolless daily maintenance; maintenance-free exciter unit
