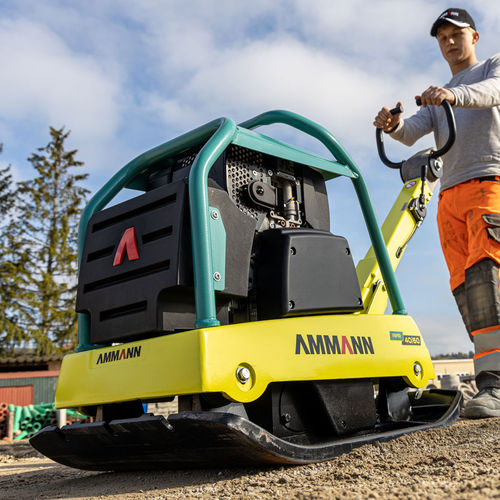

Reversible vibratory plate APR 30/50

bidirectionalcompactinggasoline engine

Overview
The APR 30/50 is a reversible vibratory plate engineered for compact handling and efficient compaction in confined or general-purpose sites. It features hydrostatic forward/reverse control, a foldable handle and low hand-arm vibration (HAV) values for operator comfort.

Key features

• Reversible vibratory plate with hydrostatic forward and reverse steering for quick directional changes
• Standard working width: 500 mm (optional 600 mm)
• Compact chassis and foldable handle for easier transport and storage
• Open design for straightforward service access
• Central lifting point for safe handling
• Low HAV (hand-arm vibration) values to reduce operator fatigue
• Two engine options (petrol and diesel) to match site requirements

Engine
Manufacturer | Engine model | Fuel | Power output (ISO) | Nominal speed | Fuel consumption
Honda | GX 270 | Petrol | 6 kW | 3100 rpm | 2.1 L/h
Hatz | 1B30 | Diesel | 4.5 kW | 2900 rpm | 1.3 L/h

Standard

• Working width 500 mm
• CE conformity
• Standard hydraulic oil
• Ammann colour design and decals
• Central lifting point

Options

• Working width 600 mm
• Hour counter
• Transport wheels
• Paving pad
• Maintenance kit
• Customer colour scheme
• Telematics ServiceLink Light
• Certificate of origin

Technical specifications

• Operating weight: 199 kg
• Maximum vibration frequency: 90 Hz
• Maximum centrifugal force: 32 kN
• Working width: 500 mm (600 mm optional)
• Engine options: Honda GX 270 (petrol, 6 kW) or Hatz 1B30 (diesel, 4.5 kW)
• Nominal speed: 3100 rpm (Honda) / 2900 rpm (Hatz)
• Fuel consumption: 2.1 L/h (Honda) / 1.3 L/h (Hatz)
• Central lifting point and foldable handle
• Open design for serviceability
