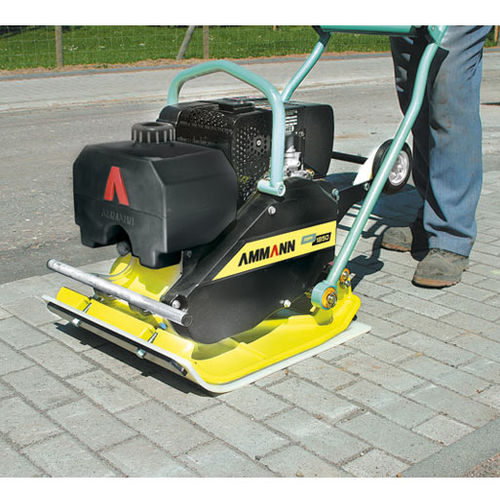

Forward travel vibratory plate APF 10/33

gasoline enginecompacting

Overview
The APF 10/33 is Ammann’s lightest and smallest forward-moving vibratory plate compactor, designed for small jobsites, confined areas and hard-to-reach spots. Its compact dimensions make it easy to transport and manoeuvre, widely used by landscaping contractors and for light commercial or domestic tasks.

Key features

• Forward-moving vibratory plate compactor
• Operating weight: 55 kg
• Maximum vibration frequency: 100 Hz
• Maximum centrifugal force: 10.5 kN
• Self-cleaning base plate
• Petrol engine: Briggs & Stratton XR 550, 2.6 kW (ISO)
• Vibration-isolated, foldable and removable handle to reduce operator stress
• Service-friendly exciter unit; protected centrifugal clutch and V-belt

Standard

• Vibration-isolated guide handle
• Central lifting point
• Powerful and reliable petrol engine
• Service-friendly exciter unit with extended life expectancy
• Well protected centrifugal clutch and V-belt

Options

• Corrosion-free water tank (5 litres) with sprinkler system for bituminous surfaces
• 3-year extended warranty program

Innovative handle
The vibration-isolated handle reduces operator fatigue. It can be folded or removed to work in confined areas or to ease transport and storage.

Engine

• Manufacturer: Briggs & Stratton
• Engine model: XR 550
• Fuel: Petrol
• Power output (ISO): 2.6 kW
• Nominal speed: 3600 rpm
• Optional water tank capacity (sprinkler system): 5 litres (1.3 gallon)

Technical specifications

• Type: Forward-moving vibratory plate
• Operating weight: 55 kg
• Maximum vibration frequency: 100 Hz
• Maximum centrifugal force: 10.5 kN
• Handle: Vibration-isolated, foldable/removable
• Base plate: Self-cleaning
• Clutch: Protected centrifugal clutch with V-belt
• Options: 5 L corrosion-free water tank and sprinkler, 3-year extended warranty
