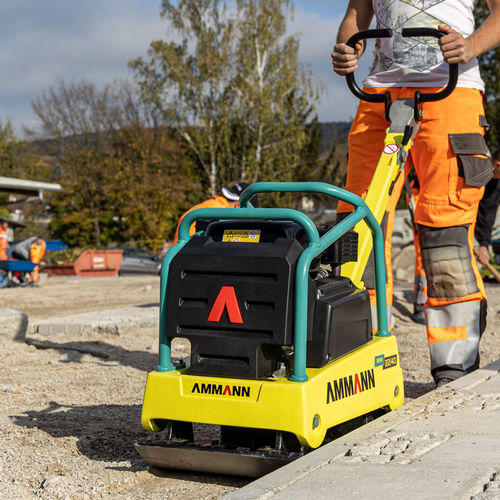

Bidirectional vibratory plate APR 22/40

forward travelreversiblecompacting

Product summary
The APR 22/40 is a compact reversible vibratory plate compactor with a 400 mm working width and an operating weight of 118 kg. Its light weight and narrow profile make it suitable for small or confined worksites, providing agile manoeuvring and efficient compaction.

Key benefits

• Well suited to small or confined worksites
• Hydrostatic forward and reverse steering for quick directional changes
• Good climbing ability and capacity to handle uneven terrain
• Low hand-arm vibration transmission

Design and maintenance

• Foldable handle for easy transport and storage
• Open design for simplified maintenance access
• Central lifting point for safe handling

Standard

• Working width: 400 mm
• CE conformity
• Standard hydraulic oil
• Ammann colour design and decals
• Central lifting point

Options

• Hour counter
• Transport wheels
• Paving pad
• Water sprinkling system 400 mm
• Maintenance kit
• Customer colour scheme
• Telematics ServiceLink Light
• Certificate of origin

Engine (available units)
Manufacturer | Engine model | Fuel | Power output (ISO) | Nominal speed | Fuel consumption
Hatz | 1B20 | Diesel | 3.1 kW | 3000 rpm | 0.9 L/h
Honda | GX 160 | Petrol | 3.6 kW | 3600 rpm | 1.4 L/h

Performance data

• Operating weight: 118 kg
• Max vibration frequency: 98 Hz
• Max centrifugal force: 23 kN

Additional product information

• Reversible vibratory plate compactor designed for agility in confined spaces
• Hydrostatic forward and reverse steering for precise manoeuvring
• Fast operational performance with simplified maintenance

Technical specifications

• Model: APR 22/40
• Type: Reversible Vibratory Plate
• Working width: 400 mm
• Operating weight: 118 kg
• Max vibration frequency: 98 Hz
• Max centrifugal force: 23 kN
• Engine options: Hatz 1B20 (Diesel, 3.1 kW, 3000 rpm) or Honda GX160 (Petrol, 3.6 kW, 3600 rpm)
• Fuel consumption: 0.9 L/h (Hatz) or 1.4 L/h (Honda)
• Steering: Hydrostatic forward and reverse steering
• Transport/handling: Foldable handle, central lifting point; transport wheels optional
• Maintenance: Open design for simplified maintenance; maintenance kit optional
• Water sprinkling: 400 mm system optional
• Telematics: ServiceLink Light optional
