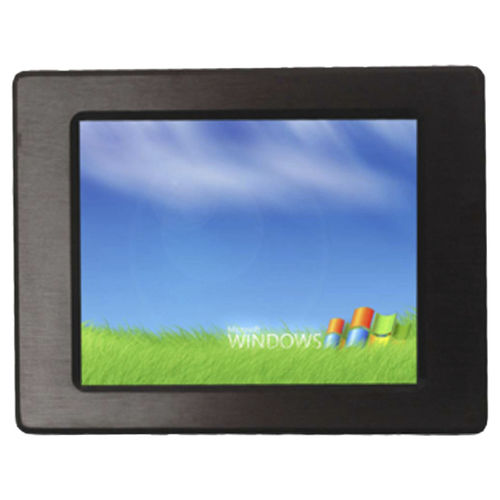

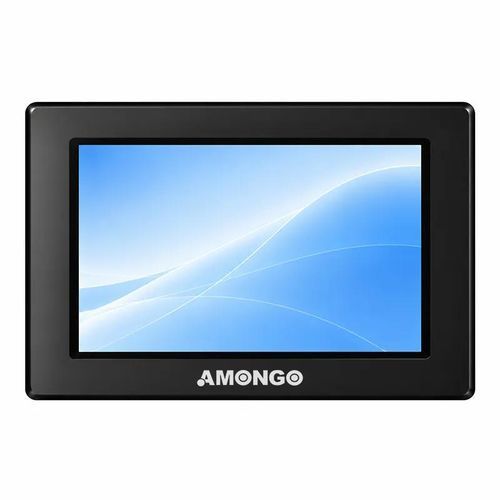

TFT-LCD monitor AMG-10IPPC03T1

resistive touch screenLED backlightdigital

Product overview
This 10.4-inch industrial display module is designed for embedded and panel-mount applications in demanding environments. It features a resistive touch panel operable without conductive media, an integrated aluminum front panel and LED backlighting. Video inputs are VGA and DVI; touch is managed via USB. Power input is DC 12V and operating temperature range is -20~70°C.

Key features

• 10.4-inch 800×600 TFT, 230 nits brightness
• Resistive touch screen (works without conductive media)
• Integrated aluminum front panel with LED backlight
• VGA and DVI video inputs; USB touch controller
• Wide operating temperature: -20~70°C

Typical applications

• Assembly line equipment
• Factory production line monitoring
• CNC machine tools
• Express locker systems

Technical specifications

• Screen Size: 10.4-inch
• Active Display Area (mm): 211.2(H) x 158.4(V)
• Pixel Pitch (mm): 0.264(H) x 0.264(V)
• Display Mode: Normally White
• Resolution: 800 x 600 pixels
• Contrast Ratio: 500:1
• Color Depth: 16.2M
• Brightness: 230 nits
• Backlight: LED
• Viewing Angles (CR=10): 140°(H); 120°(V)
• Response Time (Typ. Tr+Tf): 30 ms
• Touch Screen: Resistive
• Signal Connector: VGA / DVI
• Power Input: DC 12V
• Touch Controller: USB
• Operating Temperature: -20~70°C
• Storage Temperature: -30~80°C
• Relative Humidity: 5~90% RH
