LED backlight monitor AMG-43IPTP01T1

PCAP touchscreenindustrialPOS

Product overview

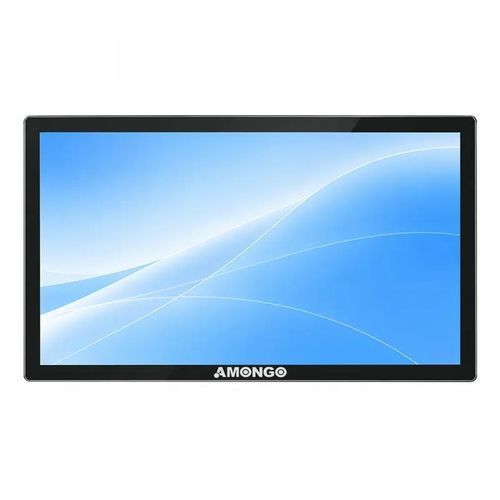

This 43-inch FHD PCAP touch display features an aluminum profile and a full-flat design. The front surface is IP65-rated for waterproofing and dust protection and is vandal-resistant with a Mohs 7 surface hardness. The display is designed for industrial environments requiring a robust, high-visibility touchscreen interface.

Key features

• 43" Full-flat PCAP touch panel (10-point)
• Aluminum profile construction
• IP65 waterproof, dustproof and vandal-proof front surface
• Surface hardness: Mohs 7
• High visibility FHD 1920x1080, 400 nits

Typical applications

• AFC (automatic fare collection)
• Industrial automation and HMI
• Self-service kiosks and public terminals

Specification
Screen Size: 43"
Active Display Area (mm): 940.896 (H) x 529.254 (V)
Pixel Pitch (mm): 0.16335 (H) x 0.49005 (V)
Display Mode: Normally Black
Display Resolution (pixel): 1920 x 1080
Contrast Ratio: 1200:1
Display Color: 16.7M
Brightness: 400 nits
Backlight: LED
Viewing Angles (CR=10): 178° (H); 178° (V)
Response Time (Typ. Tr+Tf): 8 ms
Touch Screen: PCAP Touch (10 points)
Signal Connector: VGA / DVI / HDMI
Power Input: AC 220V
Touch Controller: USB
Operating Temperature: 0~50℃ (non-condensing)
Storage Temperature: -20~60℃ (non-condensing)
Relative Humidity: 5~90% RH

Technical specifications

• Screen Size: 43"
• Resolution: 1920 x 1080
• Brightness: 400 nits
• Touch: PCAP 10-point
• Ingress Protection: IP65
• Surface Hardness: Mohs 7
• Signal: VGA / DVI / HDMI
• Power Input: AC 220V
• Operating Temp: 0~50℃ (non-condensing)
• Storage Temp: -20~60℃ (non-condensing)
• Relative Humidity: 5~90% RH
