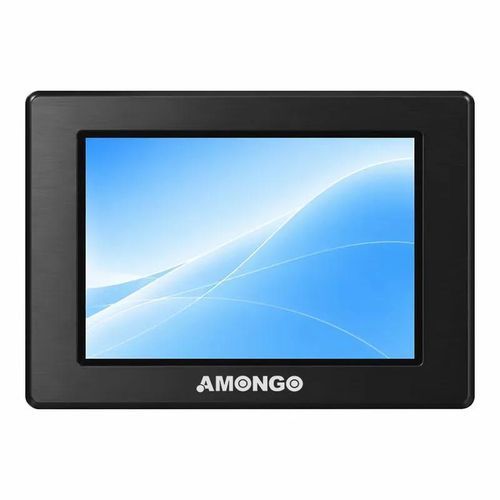

LCD monitor AMG-12IPPC01T1

resistive touch screenLED backlightindustrial

Overview
The AMG-12IPPC01T1 is a 12.1-inch industrial display module designed for demanding ambient conditions. It combines an IP65 front protection rating with a resistive touch panel and wide operating temperature range for integration into production lines, machine HMIs and harsh-environment monitoring stations.

Key features

• 12.1-inch active area with 800×600 resolution
• Resistive touch operation without conductive media
• Front protection: IP65
• Wide operating temperature: -30 to 80 °C
• Multiple signal inputs: VGA, DVI
• Backlight options: CCFL or LED, brightness 400 nits

Typical applications

• Production line inspection consoles
• High-temperature room monitoring displays
• CNC machine operator panels
• Auxiliary processing and control monitors

Specifications

• Screen size: 12.1 inch
• Active display area: 246.0 (H) × 184.5 (V) mm
• Pixel pitch: 0.3075 (H) × 0.3075 (V) mm
• Display mode: Normally White
• Resolution: 800 × 600 pixels
• Contrast ratio: 600:1
• Colors: 16.2M
• Brightness: 400 nits
• Backlight: CCFL / LED
• Viewing angles (CR=10): 140° (H) / 110° (V)
• Response time (Typ. Tr+Tf): 35 ms
• Touch screen type: Resistive
• Signal connector: VGA, DVI
• Power input: DC 12V
• Operating temperature range: -30 to 80 °C
• Storage temperature range: -30 to 80 °C
• Relative humidity: 5–90% RH
• Protection grade: IP65
