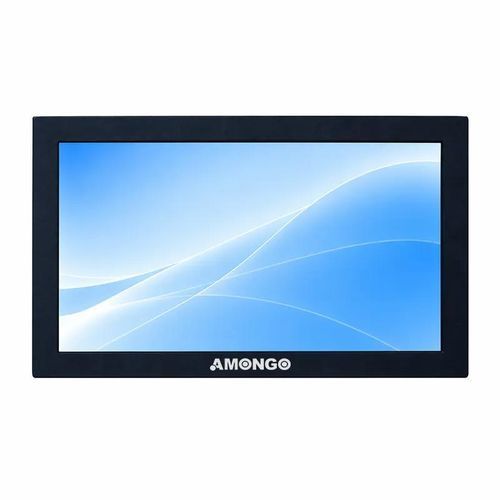

LCD/TFT monitor AMG-15IPAM01T1resistive touch screenLED backlightdigital
Add to favorites
Compare this product
Characteristics
- Technology
- LCD/TFT, resistive touch screen, 5-wire resistive touch screen, digital, LED backlight
- Applications
- for industrial machines, industrial, for digital signage, for displays, for HMI interface, POS, for IoT applications, versatile, for indoor use, for the automotive industry, multifunction
- Display size
- 15.6"
- Resolution
- 1920 x 1080
- Mounting
- housed
- Other characteristics
- HDMI, VGA, USB, DVI port, stainless steel, high-resolution
- Width
344.16 mm
(13.5496 in)- Height
193.59 mm
(7.6217 in)- Thickness
5.8 mm
(0.228 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product overview
This 15.6-inch industrial display module (AMG-15IPAM01T1) features a WLED backlight with built-in LED driver, Full HD 1920×1080 resolution and a slim 5.8 mm profile. Designed for continuous use in kiosks and ATM/VTM environments, it combines a resistive touch interface with a steel housing for installation in secure public and industrial equipment.
Key features
Typical applications
Technical specifications
This 15.6-inch industrial display module (AMG-15IPAM01T1) features a WLED backlight with built-in LED driver, Full HD 1920×1080 resolution and a slim 5.8 mm profile. Designed for continuous use in kiosks and ATM/VTM environments, it combines a resistive touch interface with a steel housing for installation in secure public and industrial equipment.
Key features
- Resistive touchscreen with USB touch controller
- WLED backlight and integrated LED driver
- Slim 5.8 mm industrial profile and robust steel housing
- Full HD 1920×1080 resolution, 270 nits brightness
- Optional ambient light sensor
- Multiple video inputs: VGA / DVI / AV / HDMI
- Operating range suited for public terminals and industrial HMIs
Typical applications
- Non-cash payment terminals and self-service kiosks
- VTM / ATM front panels
- Industrial HMI and control panels
- Public information displays and ticketing kiosks
Technical specifications
- Screen Size: 15.6"
- Active Display Area (mm): 344.16 (H) × 193.59 (V)
- Pixel Pitch (mm): 0.17925 (H) × 0.17925 (V)
- Display Mode: Normally White
- Display Resolution (pixel): 1920 × 1080
- Contrast Ratio: 400:1
- Display Color: 16.2M
- Brightness: 270 nits
- Backlight: LED (WLED)
- Viewing Angles (CR=10): 140° (H); 120° (V)
- Response Time (Typ. Tr+Tf): 8 ms
- Touch Screen: Resistive touchscreen
- Signal Connector: VGA / DVI / AV / HDMI
- Power Input: DC 12V
- Touch Controller: USB
- Operating Temperature: 0 to 50 °C (non-condensing)
- Storage Temperature: -20 to 60 °C (non-condensing)
- Relative Humidity: 5 to 90% RH
