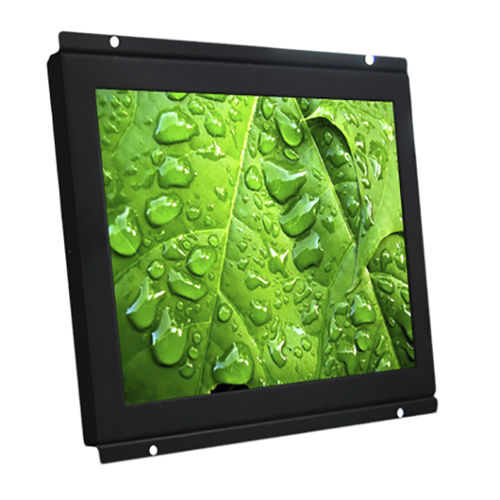

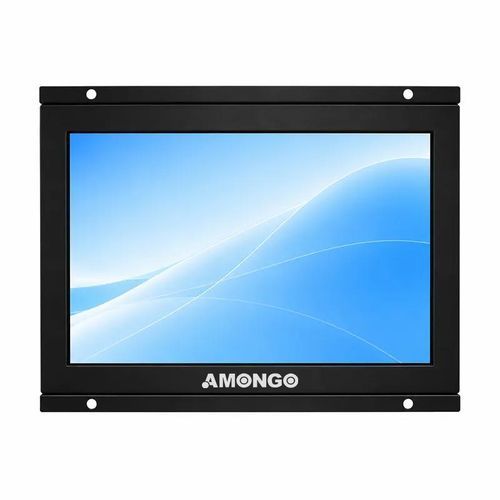

LCD/TFT monitor AMG-10IPTE03N1

resistive touch screenLED backlightdigital

Product overview
This 10.4-inch outdoor high-brightness industrial display module provides 1024×768 resolution and 1000 nits brightness. Engineered for wide operating temperatures and wide viewing angles, it is suitable for outdoor kiosks and embedded industrial equipment.

Key features

• Multiple signal interfaces (VGA, DVI, DC2.0)
• LED energy-saving backlight
• Wide operating temperature range (-20℃ to 70℃)
• Wide viewing angles: 176° horizontal / 176° vertical
• Resistive touch screen option

Typical applications

• ATM machines and kiosk displays
• Outdoor environment detectors and sensors
• Express locker interfaces
• Traffic and outdoor publicity display screens

Specification
Screen Size: 10.4"
Active Display Area (mm): 210.4 (H) x 157.8 (V)
Pixel Pitch (mm): 0.0685 (H) x 0.2055 (V)
Display Mode: Normally Black
Display Resolution (pixel): 1024 x 768
Contrast Ratio: 1200:1
Display Color: 16.2M
Brightness: 1000 nits
Backlight: LED
Viewing Angles (CR=10): 176° (H); 176° (V)
Response Time (Typ. Tr+Tf): 25 ms
Touch Screen: Resistive
Signal Connector: VGA / DVI / DC2.0
Power Input: DC2.0
Operating Temperature: -20℃ to 70℃
Storage Temperature: -20℃ to 70℃
Relative Humidity: 5–90% RH

Technical specifications

• Model: AMG-10IPTE03N1
• Screen size: 10.4"
• Resolution: 1024 x 768
• Brightness: 1000 nits
• Contrast ratio: 1200:1
• Backlight: LED (energy-saving solution)
• Touch: Resistive
• Viewing angle: 176° horizontal / 176° vertical
• Operating temperature range: -20℃ to 70℃
• Signal interfaces: VGA, DVI, DC2.0
• Power input: DC2.0
• Relative humidity: 5–90% RH
