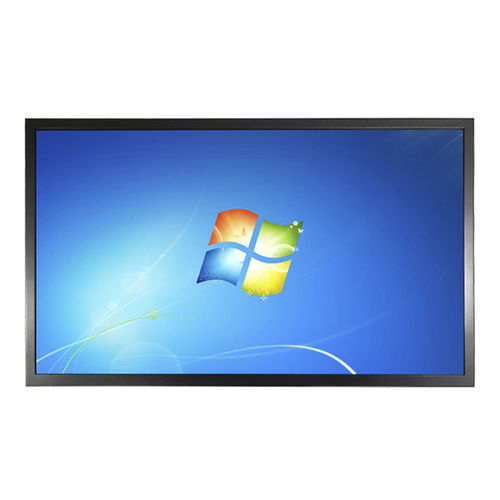

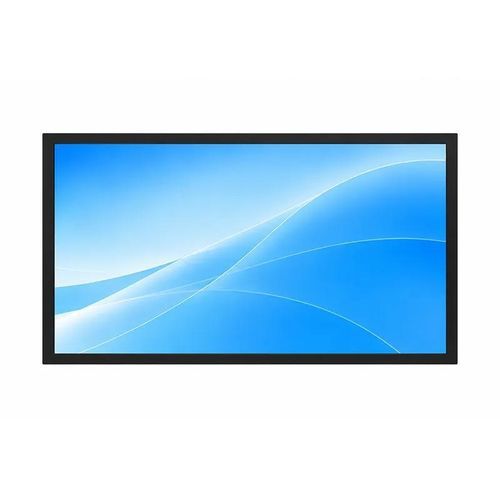

LCD/TFT monitor AMG-23IPUS01N1LED backlightdigitalindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- LCD/TFT, digital, LED backlight
- Applications
- for digital signage, industrial, for industrial machines, for displays, for HMI interface, POS, for IoT applications, versatile, construction, for the automotive industry, multifunction
- Display size
- 23"
- Resolution
- 1920 x 1080
- Mounting
- VESA mounting, embedded
- Other characteristics
- HDMI, VGA, DVI port, DisplayPort, wide viewing angle, low energy consumption, dust-proof, water-resistant
- Width
510.2 mm
(20.0866 in)- Height
287.4 mm
(11.315 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Overview
This 23" IP-rated LCD display delivers 1920×1080 Full HD resolution with LED backlight. Designed for industrial and kiosk environments, the unit features low power consumption, low heat generation and a long service life. The IP-rated front supports use in dusty or splash-prone locations.
Key features
Typical applications
Technical specifications
This 23" IP-rated LCD display delivers 1920×1080 Full HD resolution with LED backlight. Designed for industrial and kiosk environments, the unit features low power consumption, low heat generation and a long service life. The IP-rated front supports use in dusty or splash-prone locations.
Key features
- Full-view 23" LCD screen, 1920×1080 (Full HD)
- IP-rated front panel for dust/splash protection
- Supports embedded mounting and VESA installation
- Multiple signal inputs: VGA / DVI / HDMI / DP
- Low power consumption and reduced heat generation
- Wide viewing angles (178° horizontal / 178° vertical)
- DC 12V power input
Typical applications
- AFC
- Industrial equipment
- Kiosk
Technical specifications
- Screen Size: 23"
- Active Display Area (mm): 510.2(H) x 287.4(V)
- Pixel Pitch (mm): 0.265(H) x 0.265(V)
- Display Mode: Normally Black
- Display Resolution (pixel): 1920 x 1080
- Contrast Ratio: 1000:1
- Display Color: 16.7M
- Brightness: 250 nits
- Backlight: LED
- Viewing Angles (CR=10): 178(H), 178(V)
- Response Time (Typ. Tr+Tf): 14 ms
- Signal Connector: VGA / DVI / HDMI / DP
- Power Input: DC 12V
- Operating Temperature: 0 ~ 50℃
- Storage Temperature: -20 ~ 60℃
- Relative Humidity: 5 ~ 90% RH
