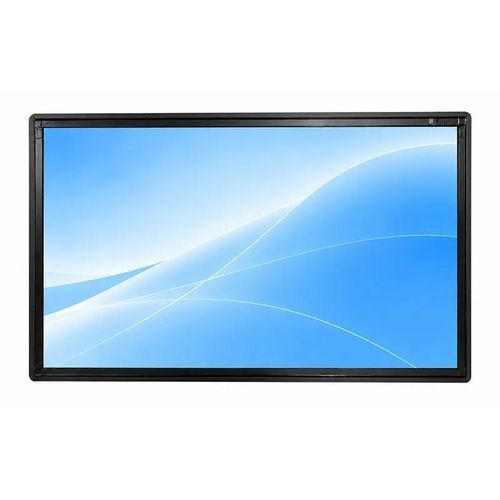

LCD monitor AMG-43IPTE01N1LED backlightprojected capacitive touchscreenindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, projected capacitive touchscreen, LED backlight
- Applications
- industrial, for digital signage, for HMI interface
- Display size
- 43"
- Resolution
- 1920 x 1080, full HD
- Mounting
- panel-mount
- Other characteristics
- HDMI, VGA, USB, DVI port, high-brightness, wide viewing angle, highly reliable
- Width
943.78 mm
(37.1567 in)- Height
532.02 mm
(20.9457 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product description
This 43" industrial FHD (1920×1080) high-brightness LCD is designed for control rooms, kiosks and industrial installations. Optional projected-capacitive touch and a tempered glass front are available for harsher environments and public interfaces.
Key features
Typical applications
Technical specifications
This 43" industrial FHD (1920×1080) high-brightness LCD is designed for control rooms, kiosks and industrial installations. Optional projected-capacitive touch and a tempered glass front are available for harsher environments and public interfaces.
Key features
- High brightness with ambient light sensor (1500 nits)
- Optional touch screen and tempered front glass
- LED backlight with wide viewing angles (178°/178°)
- Multiple signal inputs: VGA / DVI / HDMI; USB touch controller
- Designed for continuous operation with validated reliability tests
- Operating range suitable for non-condensing industrial environments
Typical applications
- AFC (Automatic Fare Collection)
- Industrial automation and HMI
- Public kiosks and digital signage
Technical specifications
- Screen Size: 43"
- Active Display Area (mm): 943.78(H) x 532.02(V)
- Pixel Pitch (mm): 0.2451(H) x 0.2451(V)
- Display Mode: Normally Black
- Display Resolution (pixel): 1920 x 1080
- Contrast Ratio: 1200:1
- Display Color: 16.7M
- Brightness: 1500 nits
- Backlight: LED
- Viewing Angles (CR=10): 178(H); 178(V)
- Response Time (Typ. Tr+Tf): 6 ms
- Touch Screen: Optional
- Signal Connector: VGA / DVI / HDMI
- Power Input: AC 220V
- Touch Controller: USB
- Operating Temperature: 0 ~ 50°C (non-condensation)
- Storage Temperature: -10 ~ 60°C (non-condensation)
- Relative Humidity: 5 ~ 90% RH
