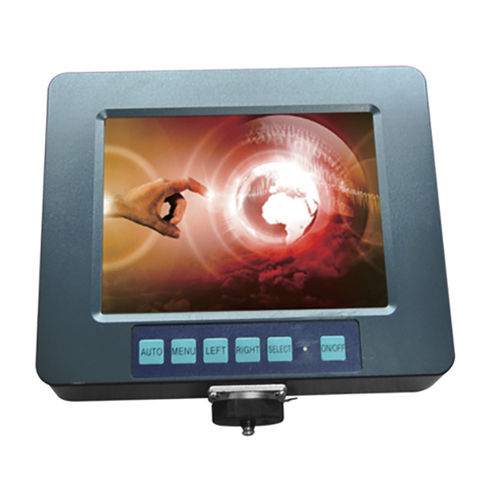

TFT-LCD monitor AMG-06IPMI01T1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED backlight
- Applications
- outdoor, industrial, for industrial machines, for digital signage, for displays, for HMI interface, POS, for IoT applications, for CNC machines, multifunction, for medical applications, wide viewing angle, for indoor use, high-temperature, for in-line monitoring, for tests, for the automotive industry
- Display size
- 6.5"
- Resolution
- 640 x 480
- Mounting
- wall-mount
- Format
- pixel pitch
- Other characteristics
- customizable, waterproof, IP67
- Width
192 mm
(7.5591 in)- Height
160 mm
(6.2992 in)- Thickness
45 mm
(1.772 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
Product Overview
The industrial LCD monitor AMG-06IPMI01T1 designed by Amongo for waterproof application with below benefits:
Specifications
Model Name: AMG-06IPMI01T1
Screen Size: 6.5"
Active Display Area (mm): 132.48(H)x99.36(V)
Pixel Pitch (mm): 0.207(H)x0.207(V)
Display Mode: Normally White
Display Resolution (pixel): 640x480
Contrast Ratio: 600:1
Brightness (cd/㎡): 800
Backlight: LED
Viewing Angles (CR =10): 160Hx140V
Response Time (Typ. Tr+Tf): 25ms
Signal Connector: WeiPu WY28-24 (VGA)
Power Consumption: DC 12V/24V
Dimension (VxHxT): 192x160x45 mm
Ingress Protection: IP67
Operating Temperature: -30～80℃
Storage Temperature: -30～80℃
Relative Humidity: 5[%RH]～90[%RH]
Caractéristiques / spécifications techniques
The industrial LCD monitor AMG-06IPMI01T1 designed by Amongo for waterproof application with below benefits:
- Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 continuous operation;
- Durable mechanical design to meet tough environmental requirements;
- 5-Wire Resistive touchscreen for harsh operation environment;
- Ingress Protection grade: IP67
- Customization service available;
Specifications
Model Name: AMG-06IPMI01T1
Screen Size: 6.5"
Active Display Area (mm): 132.48(H)x99.36(V)
Pixel Pitch (mm): 0.207(H)x0.207(V)
Display Mode: Normally White
Display Resolution (pixel): 640x480
Contrast Ratio: 600:1
Brightness (cd/㎡): 800
Backlight: LED
Viewing Angles (CR =10): 160Hx140V
Response Time (Typ. Tr+Tf): 25ms
Signal Connector: WeiPu WY28-24 (VGA)
Power Consumption: DC 12V/24V
Dimension (VxHxT): 192x160x45 mm
Ingress Protection: IP67
Operating Temperature: -30～80℃
Storage Temperature: -30～80℃
Relative Humidity: 5[%RH]～90[%RH]
Caractéristiques / spécifications techniques
- Model Name: AMG-06IPMI01T1
- Screen Size: 6.5"
- Resolution: 640 x 480 pixels
- Brightness: 800 cd/㎡
- Contrast Ratio: 600:1
- Backlight Type: LED
- Viewing Angles: 160H x 140V (CR=10)
- Response Time: 25 ms (Typ. Tr+Tf)
- Touchscreen: 5-Wire Resistive
- Signal Connector: WeiPu WY28-24 (VGA)
- Power: DC 12V/24V
- Dimensions: 192 x 160 x 45 mm
- Ingress Protection: IP67
- Operating / Storage Temperature: -30～80℃
- Relative Humidity: 5%RH ～ 90%RH
