TFT-LCD monitor AMG-17IPPC02T3multitouch screenresistive touch screenLED
Add to favorites
Compare this product
Characteristics
- Technology
- 5-wire resistive touch screen, TFT-LCD, resistive touch screen, LED backlight, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, capacitive touch screen, infrared touchscreen, with PCT touch screen, digital, LED
- Applications
- for digital signage, industrial, for industrial machines, outdoor, multifunction, for in-line monitoring, for displays, for HMI interface, wide viewing angle, high-temperature, for vehicles, POS, for IoT applications, for the automotive industry, for medical applications, for CNC machines, for indoor use
- Display size
- 17"
- Resolution
- 1280 x 1024
- Mounting
- panel-mount
- Format
- pixel pitch
- Other characteristics
- high-brightness, aluminum, sunlight-readable, customizable, IP65
- Width
354.6 mm
(13.9606 in)- Height
440.6 mm
(17.3465 in)- Thickness
56.7 mm
(2.232 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Product Overview

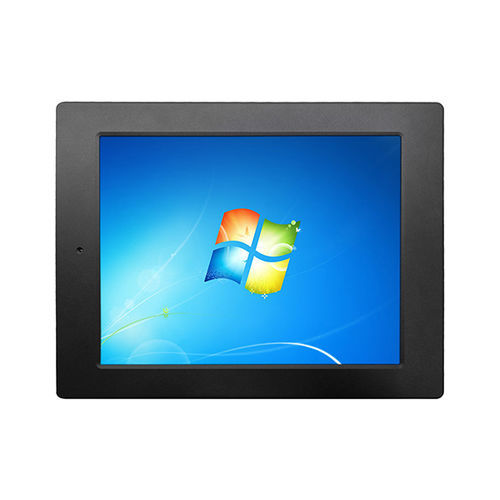

The AMG-17IPPC02T3 by Amongo is a 17-inch sunlight-readable LCD monitor engineered for outdoor and industrial applications. It combines a bright LED/CCFL backlight (up to 1200 nits), a 10-point PCAP touchscreen and an IP65-rated aluminum front bezel to enable reliable visibility and operation in demanding environments.
Key Features
Specifications
Model Name: AMG-17IPPC02T3
Screen Size: 17"
Active Display Area (mm): 337.920(H) x 270.336(V)
Pixel Pitch (mm): 0.264 x 0.264
Display Mode: Normally White
Resolution: 1280 x 1024
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: Max 1200 nits (light sensor)
Backlight: CCFL/LED
Viewing Angles: 170° H x 160° V (CR=10)
Response Time: 5 ms (Typ.)
Touch Screen: PCAP 10 points
Signal Connector: VGA, DVI
Power: DC 12V
Dimensions (V x H x T): 440.6 x 354.6 x 56.7 mm
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
Relative Humidity: 5% ~ 90% RH
Applications
The AMG-17IPPC02T3 by Amongo is a 17-inch sunlight-readable LCD monitor engineered for outdoor and industrial applications. It combines a bright LED/CCFL backlight (up to 1200 nits), a 10-point PCAP touchscreen and an IP65-rated aluminum front bezel to enable reliable visibility and operation in demanding environments.
Key Features
- 17" branded LCD panel, resolution 1280 x 1024 with wide viewing angles
- High brightness up to 1200 nits with light sensor for automatic dimming
- 10-point PCAP touchscreen for multi-touch input and industrial use
- Aluminum front bezel with IP65 protection (front) for dust and water resistance
- Designed with industrial-grade components for continuous 24/7 operation
- Customization options available for connectors, bezel and mounting
Specifications
Model Name: AMG-17IPPC02T3
Screen Size: 17"
Active Display Area (mm): 337.920(H) x 270.336(V)
Pixel Pitch (mm): 0.264 x 0.264
Display Mode: Normally White
Resolution: 1280 x 1024
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: Max 1200 nits (light sensor)
Backlight: CCFL/LED
Viewing Angles: 170° H x 160° V (CR=10)
Response Time: 5 ms (Typ.)
Touch Screen: PCAP 10 points
Signal Connector: VGA, DVI
Power: DC 12V
Dimensions (V x H x T): 440.6 x 354.6 x 56.7 mm
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
Relative Humidity: 5% ~ 90% RH
Applications
- Outdoor digital signage and kiosks
- Industrial HMIs, control panels and machine interfaces
- Self-service terminals, transportation displays and ruggedized installations
